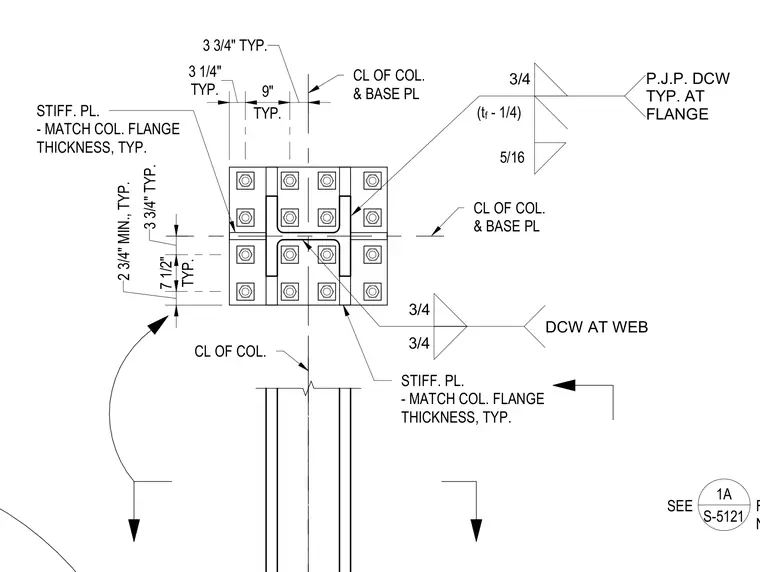

A structural column splice connection includes stiffener plates matching the column flange thickness. The flange joints feature partial joint penetration welds with a 3/4-inch dimension and a 5/16-inch fillet weld. The web connection incorporates direct complete joint penetration welds with a 3/4-inch size. Anchor bolts and base plate centerlines are dimensioned relative to the column centerline.
CL OF COL. CL OF COL. & BASE PL CL OF COL. & BASE PL TYP. 3 1/4" TYP. 9" 3 3/4" TYP. 2 3/4" MIN., TYP. TYP. 7 1/2" 3 3/4" TYP. 3/4 P.J.P. DCW TYP. AT FLANGE 5/16 (t f - 1/4) 3/4 3/4 DCW AT WEB STIFF. PL. - MATCH COL. FLANGE THICKNESS, TYP. STIFF. PL. - MATCH COL. FLANGE THICKNESS, TYP. SEE FOR NOTES NOT SHOWN 1A S-5121
