A reinforced concrete slab is supported by metal decking running perpendicular to structural steel beams. Shear studs are welded to the top flange of the beams as required, with a continuous number 3 reinforcing bar wired to the studs to support welded wire fabric or reinforcement. Additional number 3 bars at six feet zero inches long spaced at twelve inches on center are provided at cantilever conditions and at W24 and deeper beams. The slab edge features a fourteen gauge continuous bent plate edge form with a one-half inch return at the top and two continuous number 4 reinforcing bars, allowing a maximum cantilever of two feet zero inches. Clearances include one inch to welded wire fabric and three-quarters of an inch to rebar, with a minimum two inch bearing on intermediate beams.

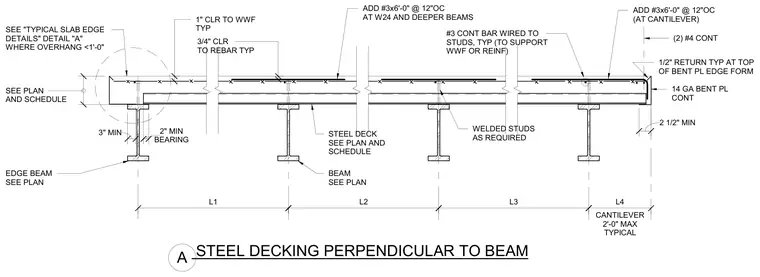

ADD #3x6'-0" @ 12"OC (AT CANTILEVER) STEEL DECKING PERPENDICULAR TO BEAM #3 CONT BAR WIRED TO STUDS, TYP (TO SUPPORT WWF OR REINF) SEE PLAN AND SCHEDULE EDGE BEAM SEE PLAN BEAM SEE PLAN STEEL DECK SEE PLAN AND SCHEDULE WELDED STUDS AS REQUIRED ADD #3x6'-0" @ 12"OC AT W24 AND DEEPER BEAMS 14 GA BENT PL CONT (2) #4 CONT CANTILEVER 2'-0" MAX TYPICAL SEE "TYPICAL SLAB EDGE DETAILS" DETAIL "A" WHERE OVERHANG <1'-0" 1/2" RETURN TYP AT TOP OF BENT PL EDGE FORM L1 L2 L3 L4 2 1/2" MIN . 3" MIN BEARING 2" MIN 1" CLR TO WWF TYP 3/4" CLR TO REBAR TYP A . .
