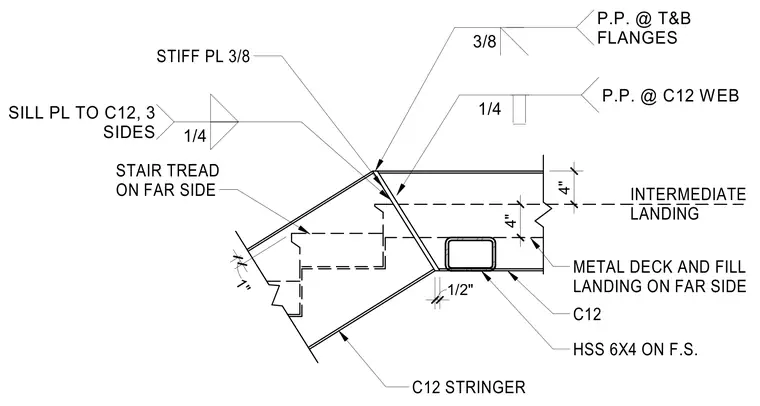

A channel stringer (C12) frames into an HSS 6x4 member located on the far side, supporting a metal deck and fill landing assembly. The connection incorporates a three-eighths-inch stiffener plate welded to the top and bottom flanges with a three-eighths-inch fillet weld, and a quarter-inch plate at the C12 web. A sill plate is welded to the C12 on three sides using a quarter-inch fillet weld. Stair treads are positioned on the far side of the stringer.
1" STIFF PL 3/8 STAIR TREAD ON FAR SIDE C12 STRINGER C12 HSS 6X4 ON F.S. METAL DECK AND FILL LANDING ON FAR SIDE INTERMEDIATE LANDING 1/4 SILL PL TO C12, 3 SIDES 3/8 P.P. @ T&B FLANGES 1/4 P.P. @ C12 WEB 4" 4" 1/2"
