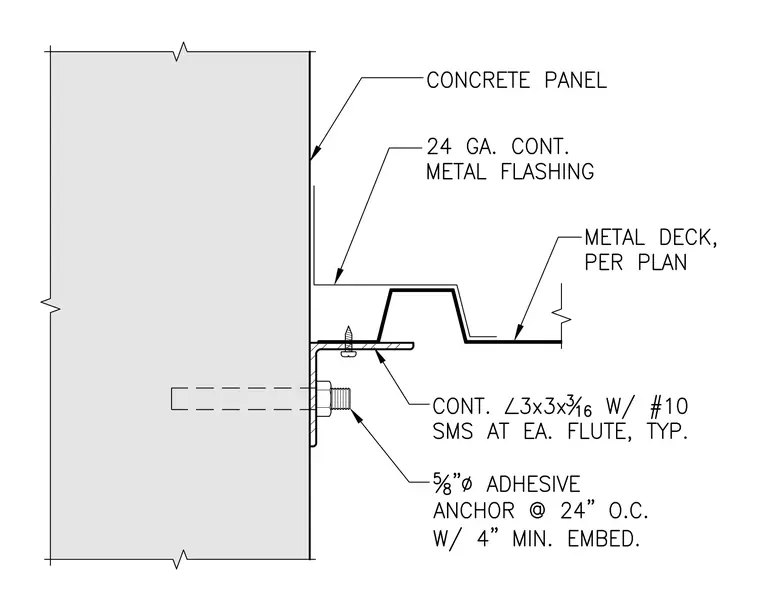

A continuous 3x3x3/16 inch steel angle bears against a concrete panel wall, anchored by five-eighths inch diameter adhesive anchors spaced at twenty-four inches on center with a four-inch minimum embedment. The metal deck bears on the horizontal leg of the angle and is secured with number ten sheet metal screws at each flute. A twenty-four gauge continuous metal flashing protects the joint above the angle against the concrete panel.
