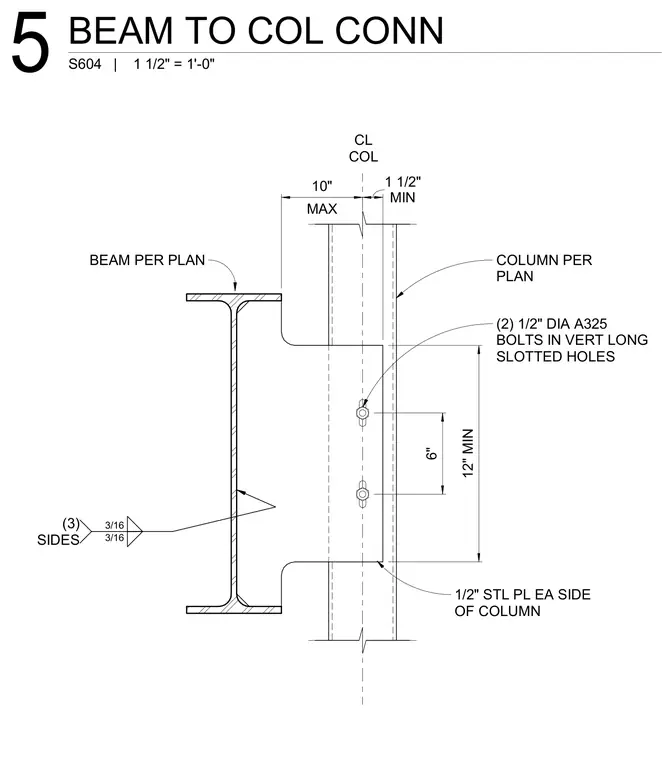

A steel beam connects to a column per plan using a half-inch steel plate on each side of the column. Two half-inch diameter A325 bolts in vertical long-slotted holes secure the connection, providing adjustability. Three-sixteenth-inch fillet welds attach the plates to the beam web on three sides. The layout specifies a minimum twelve-inch vertical plate dimension with a six-inch bolt spacing and a ten-inch maximum projection.
12" MIN MAX 10" MIN 1 1/2" 6" (2) 1/2" DIA A325 BOLTS IN VERT LONG SLOTTED HOLES CL COL 1/2" STL PL EA SIDE OF COLUMN COLUMN PER PLAN BEAM PER PLAN 3/16 3/16 (3) SIDES S604 | 1 1/2" = 1'-0" 5 BEAM TO COL CONN
