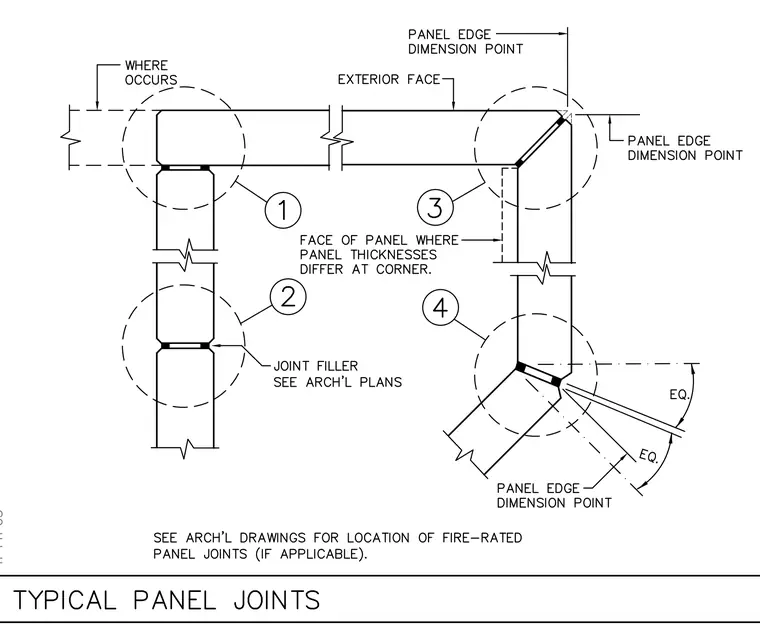

Precast concrete wall panels connect at straight runs and mitered corners with joint filler detailed per architectural plans. Panel edge dimension points establish exterior face lines, thickness transitions, and equal-angle corner layouts. Fire-rated joints are incorporated as indicated on architectural drawings where applicable.
