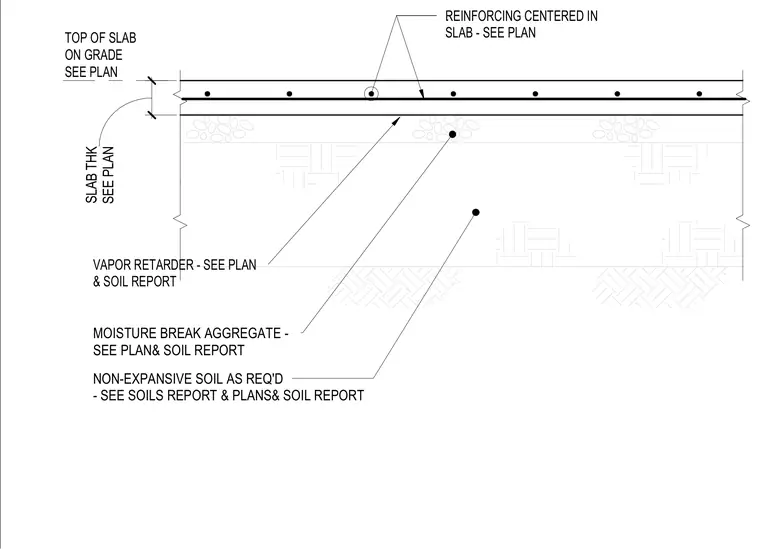

A concrete slab on grade rests on a prepared sub-base of non-expansive soil as required by the soils report. A moisture break aggregate layer sits directly beneath the slab, overlaid with a vapor retarder placed per plan and soil report requirements. Reinforcing steel is positioned centered within the slab thickness.
TOP OF SLAB ON GRADE SEE PLAN NON-EXPANSIVE SOIL AS REQ'D - SEE SOILS REPORT & PLANS& SOIL REPORT VAPOR RETARDER - SEE PLAN & SOIL REPORT MOISTURE BREAK AGGREGATE - SEE PLAN& SOIL REPORT REINFORCING CENTERED IN SLAB - SEE PLAN SEE PLAN SLAB THK .
