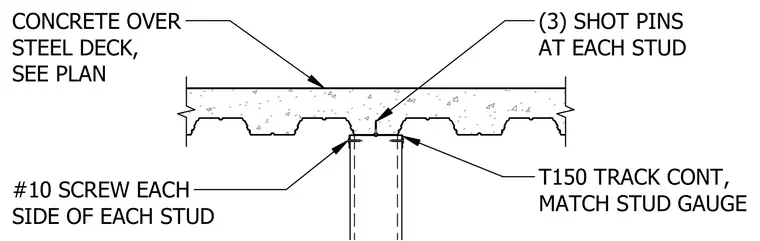

A continuous T150 track matches the stud gauge and fastens to the underside of the concrete-filled steel deck using three shot pins at each stud location. The track connects to the vertical studs using number 10 screws on each side of every stud. The concrete slab is poured over a profiled steel deck sized per structural plans.
T150 TRACK CONT, MATCH STUD GAUGE #10 SCREW EACH SIDE OF EACH STUD CONCRETE OVER STEEL DECK, SEE PLAN (3) SHOT PINS AT EACH STUD
