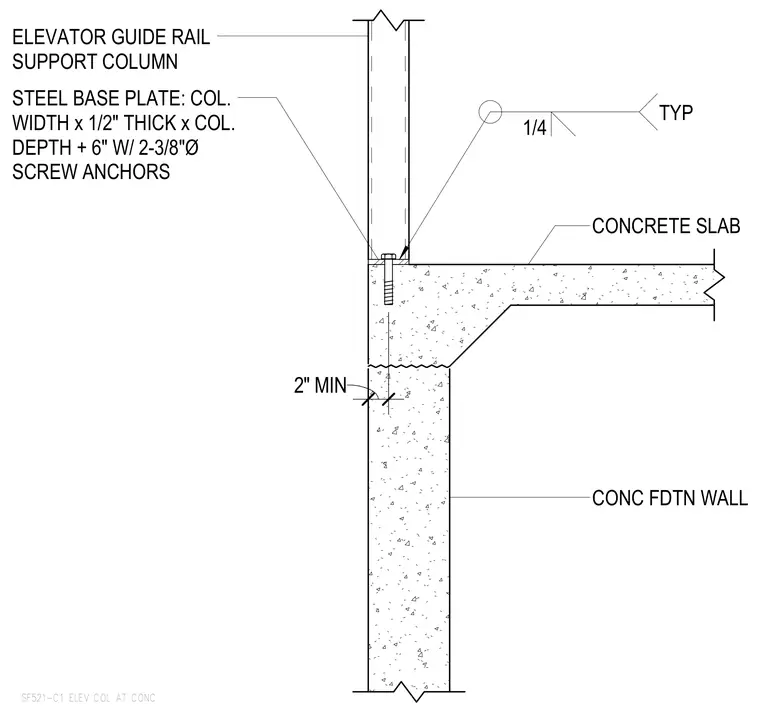

An elevator guide rail support column is anchored to a concrete foundation wall and concrete slab via a steel base plate. The base plate measures column width by one-half inch thick by column depth plus six inches, secured with two three-eighths-inch diameter screw anchors. A typical one-quarter-inch fillet weld connects the column to the base plate.
SF521-C1 ELEV COL AT CONC CONC FDTN WALL CONCRETE SLAB ELEVATOR GUIDE RAIL SUPPORT COLUMN STEEL BASE PLATE: COL. WIDTH x 1/2" THICK x COL. DEPTH + 6" W/ 2-3/8"Ø SCREW ANCHORS 1/4 TYP 2" MIN
