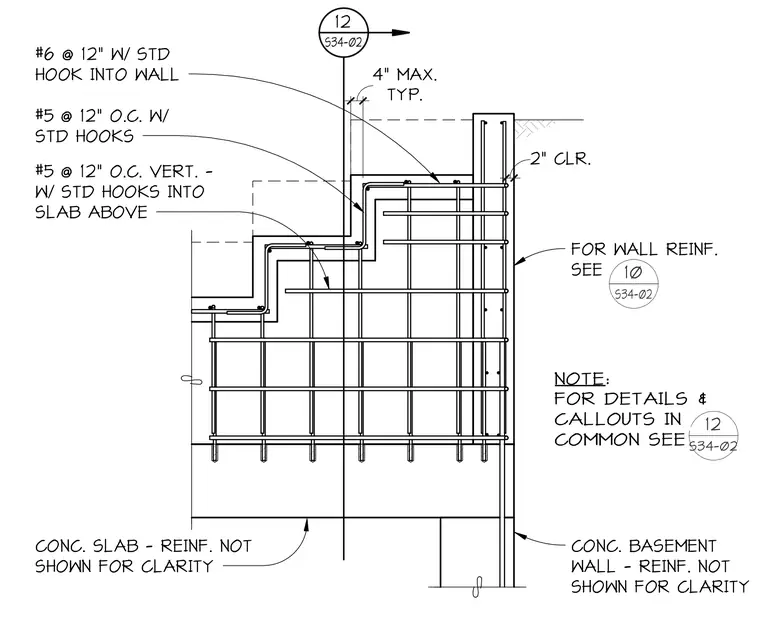

A reinforced concrete basement wall meets a stepped concrete slab above with number six horizontal bars spaced at twelve inches on center featuring standard hooks extending into the wall. Number five vertical bars spaced at twelve inches on center with standard hooks anchor into the slab above with a typical four-inch maximum dimension. Two inches of clearance is maintained for the wall reinforcement. Additional wall reinforcement and common details are cross-referenced to sheet S34-02.
#6 @ 12" W/ STD HOOK INTO WALL TYP. 4" MAX. #5 @ 12" O.C. W/ STD HOOKS #5 @ 12" O.C. VERT. - W/ STD HOOKS INTO SLAB ABOVE 12 S34-02 NOTE: FOR DETAILS & CALLOUTS IN COMMON SEE 12 S34-02 2" CLR. FOR WALL REINF. SEE 10 S34-02 CONC. BASEMENT WALL - REINF. NOT SHOWN FOR CLARITY CONC. SLAB - REINF. NOT SHOWN FOR CLARITY
