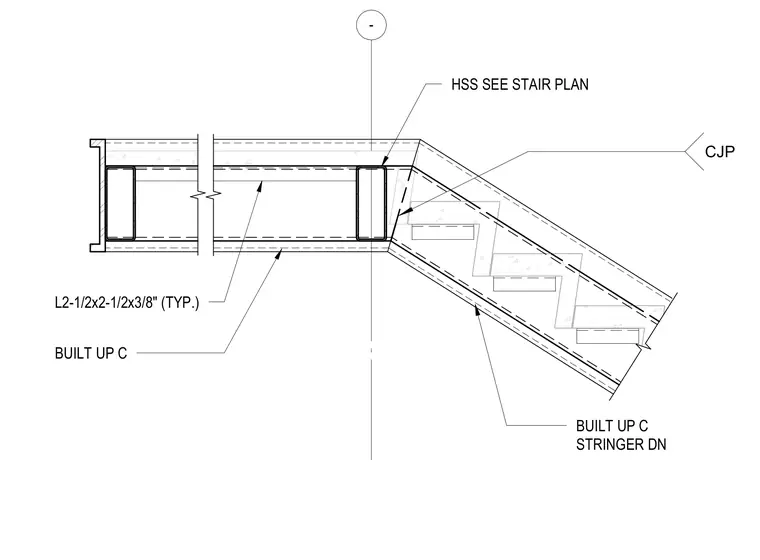

The built-up channel stair stringer connects downward to a hollow structural section framing member sized per the stair plan. The connection is secured with complete joint penetration welds. Typical framing utilizes L 2-1/2x2-1/2x3/8 inch structural angles.
- L2-1/2x2-1/2x3/8" (TYP.) BUILT UP C BUILT UP C STRINGER DN CJP HSS SEE STAIR PLAN
