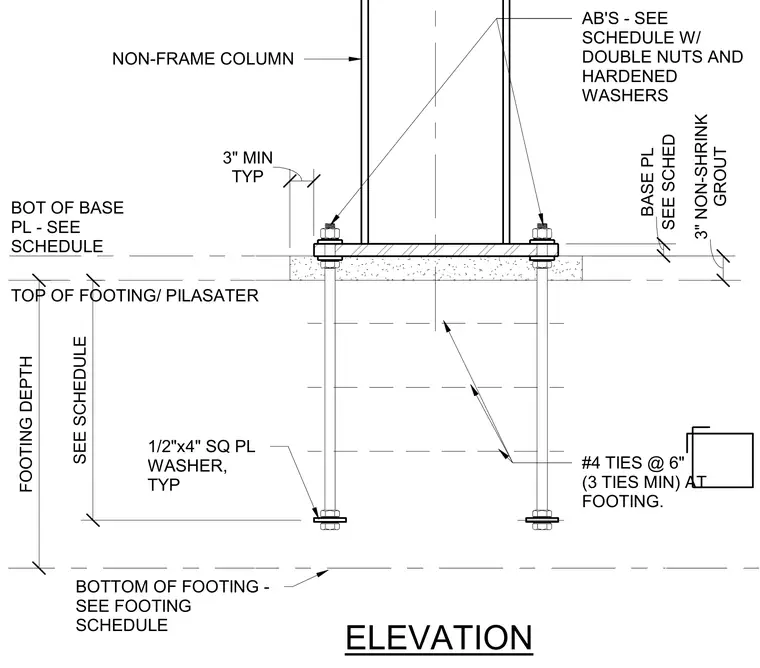

A non-frame column base plate is set upon a concrete footing or pilaster with a three-inch layer of non-shrink grout. The base plate and anchor bolts are sized per the structural schedule, secured with double nuts and hardened washers at the top. The embedded anchor bolts feature one-half-inch by four-inch square plate washers typically at the bottom. Number four ties are spaced at six inches with a minimum of three ties provided at the footing. Footing depth and elevations are referenced to the schedule.
BOT OF BASE PL - SEE SCHEDULE TOP OF FOOTING/ PILASATER AB'S - SEE SCHEDULE W/ DOUBLE NUTS AND HARDENED WASHERS NON-FRAME COLUMN ELEVATION BOTTOM OF FOOTING - SEE FOOTING SCHEDULE 1/2"x4" SQ PL WASHER, TYP TYP 3" MIN GROUT 3" NON-SHRINK SEE SCHED BASE PL FOOTING DEPTH SEE SCHEDULE #4 TIES @ 6" (3 TIES MIN) AT FOOTING.
