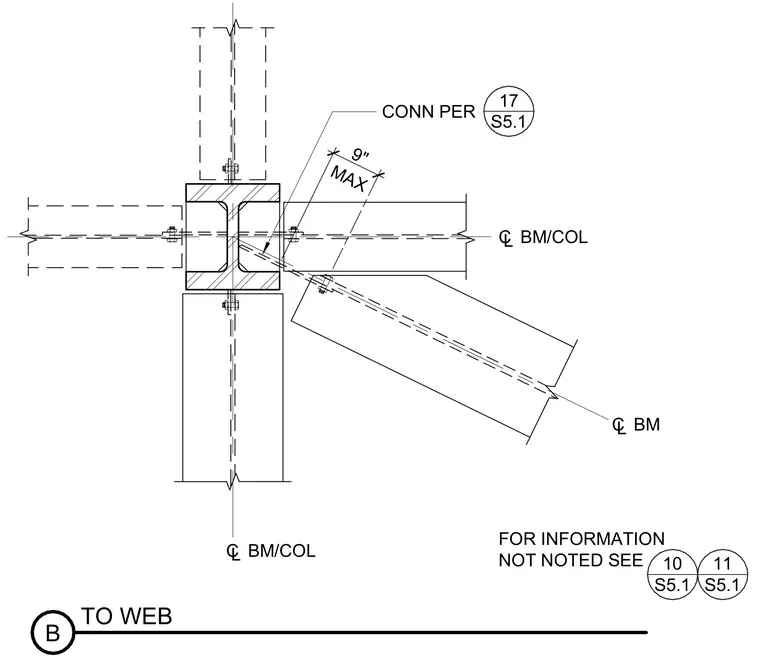

A structural steel framing connection details a beam and a diagonal brace framing into a column web. The connection requires a maximum distance of nine inches between specific member centerlines. Fasteners and hardware are configured per detail references provided on sheet S5.1. Additional unshown criteria reference notes directing to details 10 and 11 on the same sheet.
B TO WEB ¢ BM ¢ BM/COL ¢ BM/COL CONN PER MAX 9" FOR INFORMATION NOT NOTED SEE 10 S5.1 11 S5.1 17 S5.1
