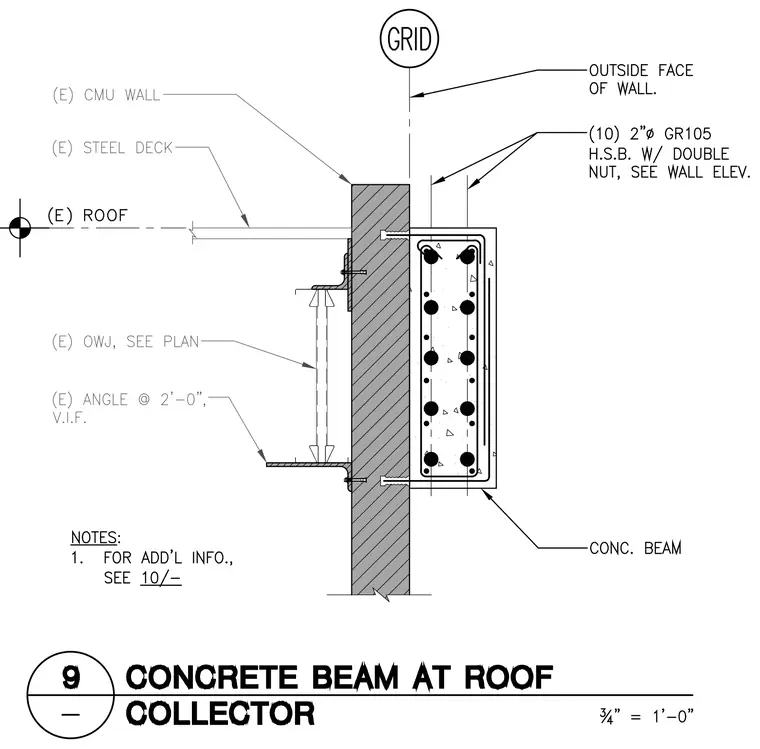

An existing concrete beam frames into an existing concrete masonry unit wall at the roof level, tied with ten two-inch diameter Grade 105 high-strength bolts featuring double nuts. An existing steel roof deck bears against the masonry wall. An existing open-web joist connects to the wall assembly via an existing angle spaced at two feet, verified in field. Additional information is referenced on sheet ten.
