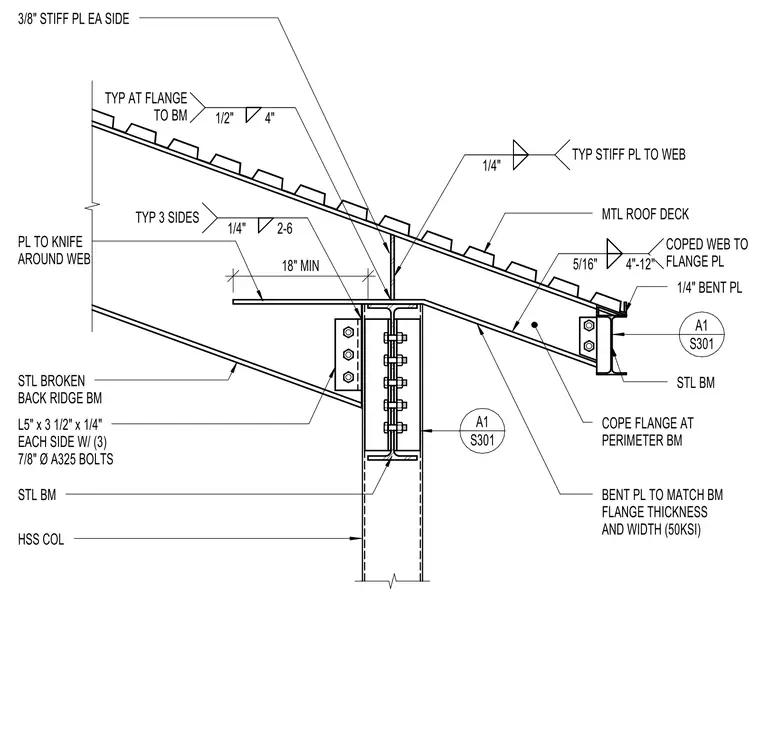

A structural steel broken back ridge beam connects to a hollow structural section column using three-eighths-inch stiffener plates on each side welded to the web with one-quarter-inch welds. The steel broken back ridge beam features a plate knifed around the web and is secured with structural angles sized five by three and a half by one-quarter inches on each side with three seven-eighths-inch diameter A325 bolts. A metal roof deck spans across the steel beams, which include coped flanges at the perimeter beam and a bent plate matching the beam flange thickness and width made of 50 KSI steel. Fillet welds of various sizes secure the stiffener plates, flange-to-beam connections, and coped web-to-flange plates.
18" MIN 3/8" STIFF PL EA SIDE MTL ROOF DECK STL BM 1/4" BENT PL COPE FLANGE AT PERIMETER BM BENT PL TO MATCH BM FLANGE THICKNESS AND WIDTH (50KSI) HSS COL STL BM L5" x 3 1/2" x 1/4" EACH SIDE W/ (3) 7/8" Ø A325 BOLTS STL BROKEN BACK RIDGE BM PL TO KNIFE AROUND WEB 1/4" 2-6 TYP 3 SIDES 1/2" 4" TYP AT FLANGE TO BM 1/4" TYP STIFF PL TO WEB 5/16" 4"-12" COPED WEB TO FLANGE PL S301 A1 S301 A1
