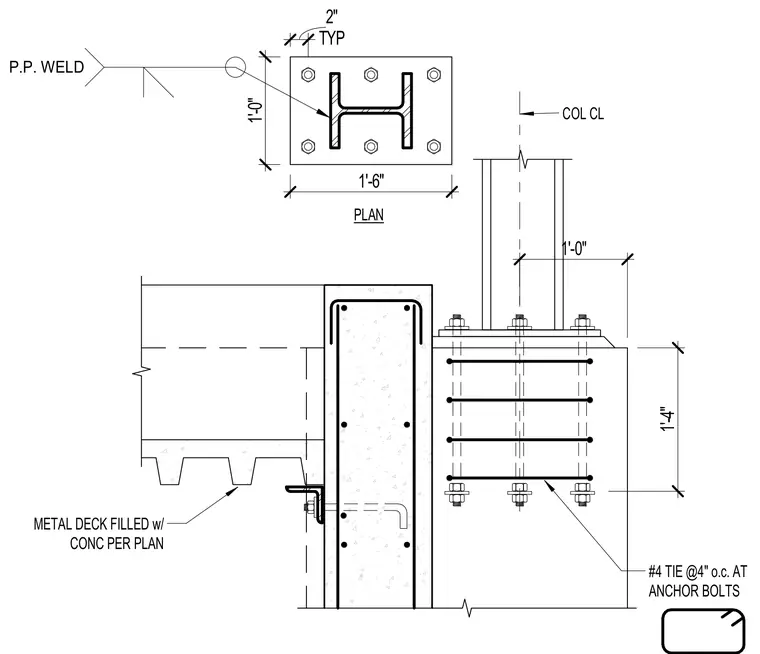

A structural steel column bears on a base plate measuring 1'-6" by 1'-0", secured to a concrete pier by anchor bolts. The base plate connects to the column web and flanges via PJP welds, indicated by a callout referencing a P.P. weld. The concrete pier is reinforced with number 4 ties spaced at 4 inches on center around the anchor bolts. Adjacent to the pier, metal deck filled with concrete bears against the concrete edge, anchored with an embedded angle and bent bar.
PLAN P.P. WELD TYP 2" 1'-6" 1'-0" 1'-0" COL CL METAL DECK FILLED w/ CONC PER PLAN 1'-4" #4 TIE @4" o.c. AT ANCHOR BOLTS
