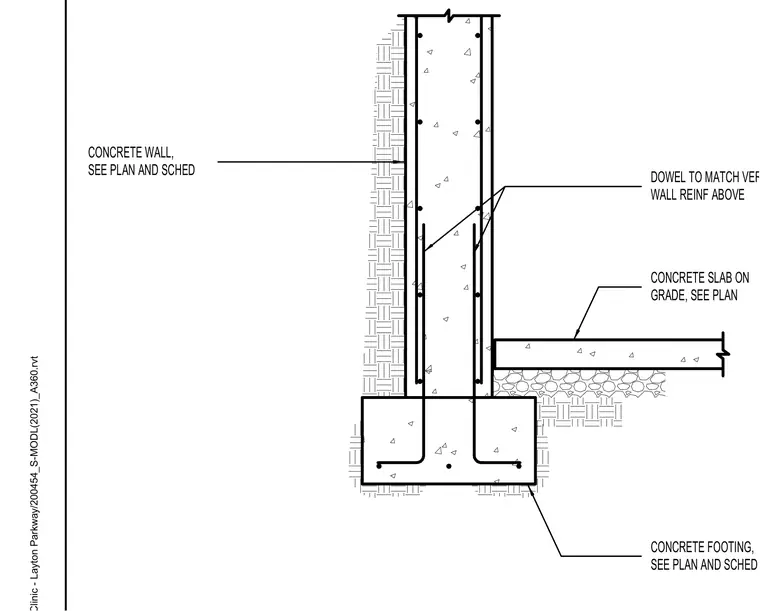

A reinforced concrete wall bears on a continuous concrete footing sized per plan and schedule. Vertical wall reinforcing dowels extend from the footing to match the vertical wall reinforcement above. A concrete slab on grade intersects the wall, supported by compacted subgrade.
CONCRETE SLAB ON GRADE, SEE PLAN DOWEL TO MATCH VERT WALL REINF ABOVE CONCRETE FOOTING, SEE PLAN AND SCHED CONCRETE WALL, SEE PLAN AND SCHED
