A buckling-restrained braced frame column baseplate anchors to a reinforced concrete pile cap. The Grade 50 steel baseplate is secured with sixteen 2-inch diameter ASTM F1554 Grade 105 anchor bolts equipped with 3/8-inch by 4-inch square washers and double nuts. A non-shrink grout layer approximately 4 inches thick is placed beneath the plate around the leveling nuts. The concrete pile cap and slab-on-grade feature continuous and distributed reinforcing bars per plan, bearing over pile foundations designed by others.

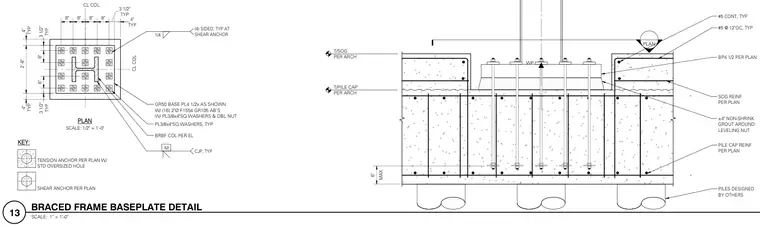

GR50 BASE PL4 1/2x AS SHOWN W/ (16) 2"Ø F1554 GR105 AB'S W/ PL3/8x4"SQ WASHERS & DBL NUT CJP, TYP CL COL CL COL M PL3/8x4"SQ WASHERS, TYP TYP 4" 2'-8" TYP 4" TYP 3 1/2" 8" 8" TYP 3 1/2" 8" 8" 8" 8" TYP 3 1/2" TYP 4" PLAN SCALE: 1/2" = 1'-0" BRBF COL PER EL 1/4 (4) SIDED, TYP AT SHEAR ANCHOR TENSION ANCHOR PER PLAN W/ STD OVERSIZED HOLE SHEAR ANCHOR PER PLAN KEY: PLAN WP T/SOG PER ARCH T/PILE CAP PER ARCH PILE CAP REINF PER PLAN PILES DESIGNED BY OTHERS SOG REINF PER PLAN #5 CONT, TYP #5 @ 12"OC, TYP BP4 1/2 PER PLAN ±4" NON-SHRINK GROUT AROUND LEVELING NUT MAX 6" SCALE: 1" = 1'-0" 13 BRACED FRAME BASEPLATE DETAIL
