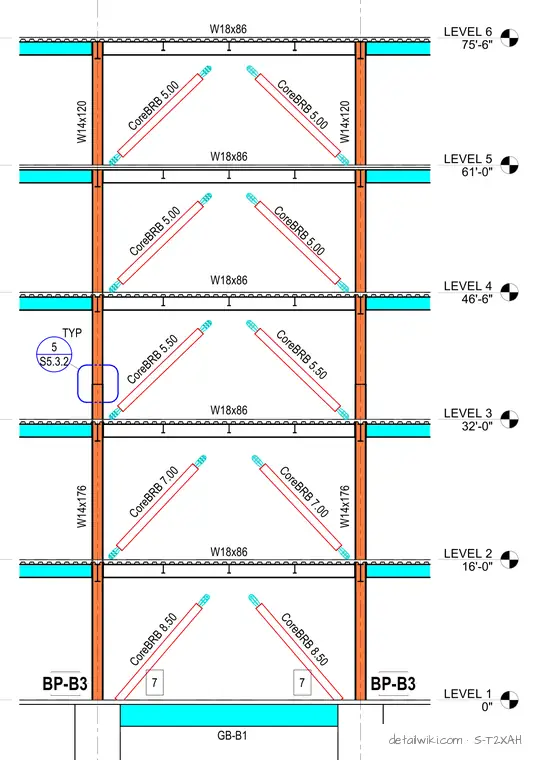

The drawing illustrates a multi-level structural steel framing elevation incorporating W-shape columns (W14 profiles), W-shape floor beams (W18 profiles), and diagonal buckling-restrained braces (CoreBRB) of varying sizes across different stories. Base plates (BP-B3) anchor the columns at Level 1, and grade beams (GB-B1) are indicated at the foundation level. Floor elevations are marked from Level 1 (0'-0") up to Level 6 (75'-6").
Text on the drawing
LEVEL 1 0" LEVEL 2 16'-0" LEVEL 3 32'-0" LEVEL 4 46'-6" LEVEL 5 61'-0" LEVEL 6 75'-6" W14x120 W14x120 W14x176 W14x176 W18x86 W18x86 W18x86 W18x86 W18x86 CoreBRB 5.50 CoreBRB 5.50 CoreBRB 5.00 CoreBRB 5.00 CoreBRB 5.00 CoreBRB 5.00 CoreBRB 7.00 CoreBRB 7.00 CoreBRB 8.50 CoreBRB 8.50 7 7 BP-B3 BP-B3 GB-B1 S5.3.2 5 TYP
