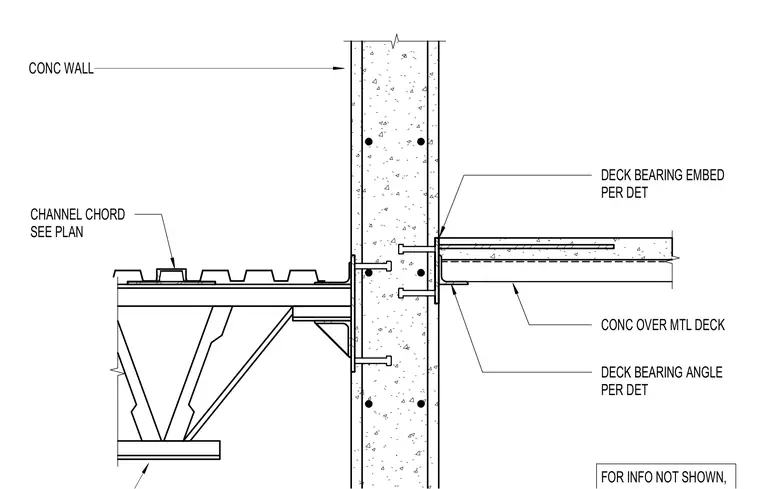

A steel joist bears against a concrete wall using a deck bearing embed and a deck bearing angle sized per detail. A channel chord is supported on the metal deck and concrete fill assembly, with additional information provided per plan.
CONC WALL DECK BEARING EMBED PER DET CONC OVER MTL DECK DECK BEARING ANGLE PER DET FOR INFO NOT SHOWN, CHANNEL CHORD SEE PLAN
