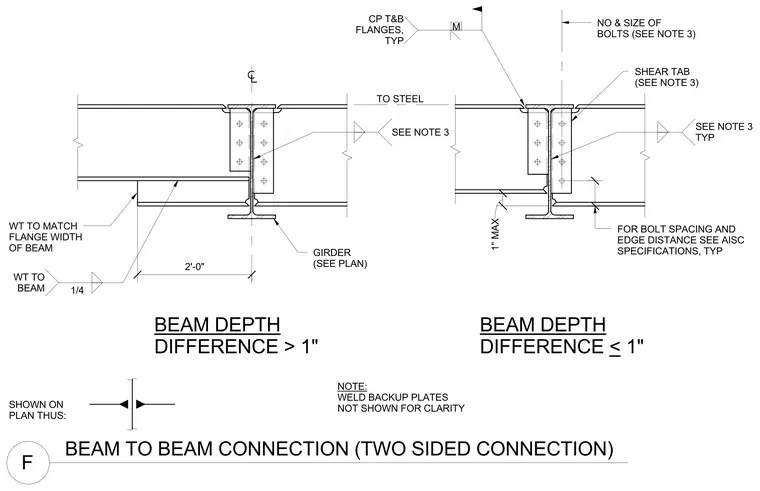

Two-sided beam-to-beam connections frame into a supporting girder web using welded shear tabs and structural tee sections sized per plan. The assembly accommodates conditions where the beam depth difference is greater than one inch as well as one inch or less, utilizing typical one-quarter inch fillet welds and complete joint penetration welds at the top and bottom flanges. Bolt sizes, quantities, spacing, and edge distances conform to AISC specifications. Weld backup plates are omitted for clarity.
BEAM TO BEAM CONNECTION (TWO SIDED CONNECTION) F BEAM DEPTH DIFFERENCE > 1" BEAM DEPTH DIFFERENCE < 1" NOTE: WELD BACKUP PLATES NOT SHOWN FOR CLARITY TO STEEL NO & SIZE OF BOLTS (SEE NOTE 3) FOR BOLT SPACING AND EDGE DISTANCE SEE AISC SPECIFICATIONS, TYP SHEAR TAB (SEE NOTE 3) GIRDER (SEE PLAN) WT TO MATCH FLANGE WIDTH OF BEAM SHOWN ON PLAN THUS: 2'-0" 1/4 WT TO BEAM SEE NOTE 3 1" MAX . CP T&B FLANGES, TYP SEE NOTE 3 TYP M
