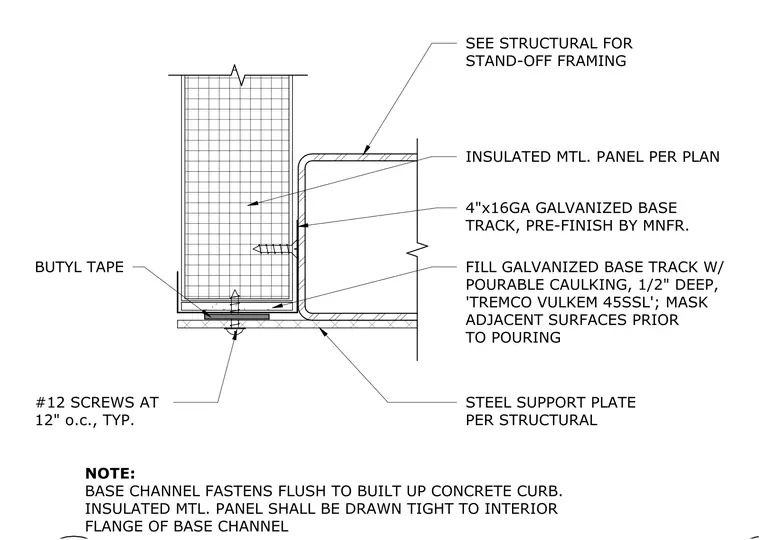

The insulated metal panel sits within a four-inch by sixteen-gauge galvanized base track, pre-finished by the manufacturer. The base track fastens flush to a steel support plate, with the panel drawn tight against the interior flange of the track. A layer of butyl tape sits between the base track and the support plate. The base track contains a half-inch depth of pourable Tremco Vulkem 45SSL caulking, requiring adjacent surfaces to be masked prior to application. Number twelve screws spaced at twelve inches on center secure the assembly, typical. The base channel fastens flush to a built-up concrete curb, with stand-off framing details provided separately in the structural drawings.
Text on the drawing
INSULATED MTL. PANEL PER PLAN 4"x16GA GALVANIZED BASE TRACK, PRE-FINISH BY MNFR. FILL GALVANIZED BASE TRACK W/ POURABLE CAULKING, 1/2" DEEP, 'TREMCO VULKEM 45SSL'; MASK ADJACENT SURFACES PRIOR TO POURING #12 SCREWS AT 12" o.c., TYP. NOTE: BASE CHANNEL FASTENS FLUSH TO BUILT UP CONCRETE CURB. INSULATED MTL. PANEL SHALL BE DRAWN TIGHT TO INTERIOR FLANGE OF BASE CHANNEL BUTYL TAPE STEEL SUPPORT PLATE PER STRUCTURAL SEE STRUCTURAL FOR STAND-OFF FRAMING
