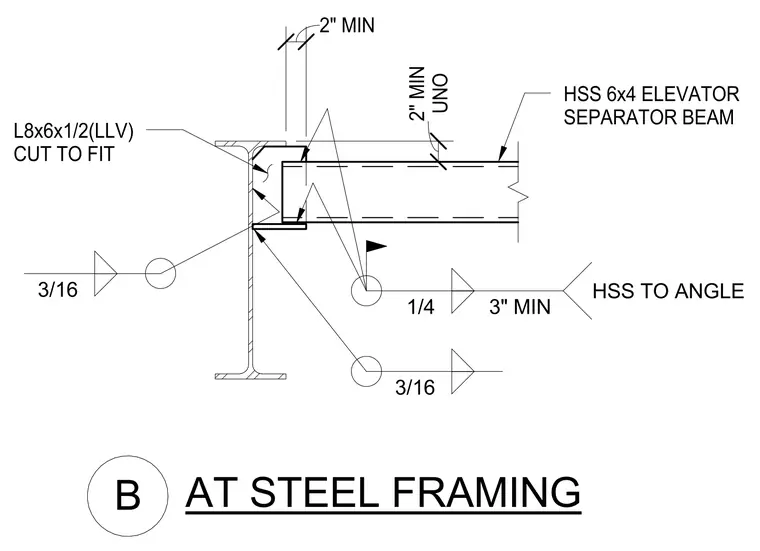

An HSS 6x4 elevator separator beam connects to steel framing using an L8x6x1/2 angle cut to fit with a two-inch minimum clearance unless noted otherwise. The angle is welded to the supporting steel member with a three-sixteenth-inch fillet weld. The hollow structural section connects to the angle using a one-quarter-inch fillet weld with a three-inch minimum length.
HSS 6x4 ELEVATOR SEPARATOR BEAM AT STEEL FRAMING B L8x6x1/2(LLV) CUT TO FIT 2" MIN UNO 2" MIN 1/4 3" MIN HSS TO ANGLE 3/16 3/16
