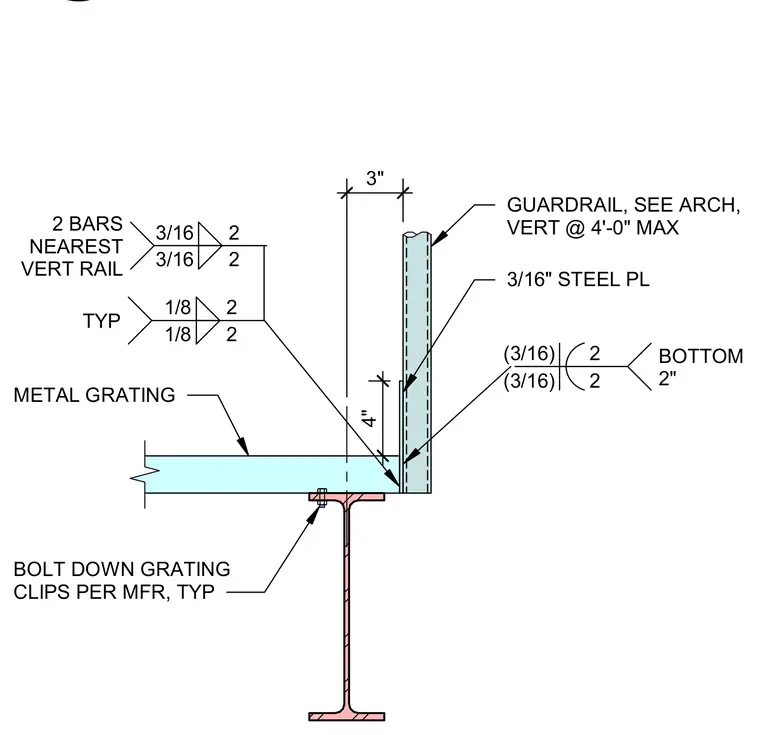

Metal grating bears on a supporting steel beam and is secured in place with bolted grating clips installed per the manufacturer. A vertical guardrail attaches to a three-sixteenths-inch steel plate located at the edge of the grating. Two bars nearest the vertical rail feature welds specified as three-sixteenths-inch with a two-inch spacing, while typical connections utilize one-eighth-inch welds with a two-inch spacing. The vertical guardrail supports are spaced at four feet maximum.
BOLT DOWN GRATING CLIPS PER MFR, TYP METAL GRATING 3" (3/16) 2 (3/16) 2 BOTTOM 2" 1/8 2 1/8 2 TYP 3/16 2 3/16 2 2 BARS NEAREST VERT RAIL GUARDRAIL, SEE ARCH, VERT @ 4'-0" MAX 3/16" STEEL PL 4"
