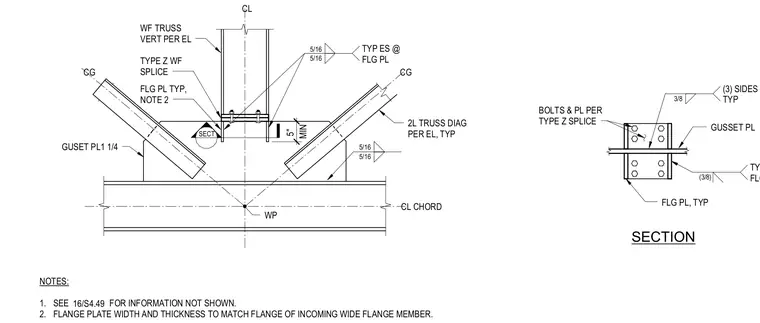

A Type Z wide-flange truss splice connection joins a vertical wide-flange member to a chord member with intersecting double-angle truss diagonals. The connection utilizes a 1-1/4 inch thick gusset plate welded with 5/16 inch fillet welds to the members. Flange plates match the width and thickness of the incoming wide-flange member flange, secured with bolts and plates per the Type Z splice schedule. Three-eighths inch welds are specified at the flange plates typical on three sides. A minimum clearance of 5 inches is maintained between intersecting elements.
SECT WP 5/16 5/16 GUSET PL1 1/4 TYPE Z WF SPLICE 2L TRUSS DIAG PER EL, TYP MIN 5" TYP ES @ FLG PL 5/16 5/16 WF TRUSS VERT PER EL CG FLG PL TYP, NOTE 2 CL CG CL CHORD NOTES: 1. SEE FOR INFORMATION NOT SHOWN. 2. FLANGE PLATE WIDTH AND THICKNESS TO MATCH FLANGE OF INCOMING WIDE FLANGE MEMBER. BOLTS & PL PER TYPE Z SPLICE GUSSET PL (3) SIDES TYP 3/8 TYP @ FLG PL (3/8) FLG PL, TYP SECTION 16/S4.49
