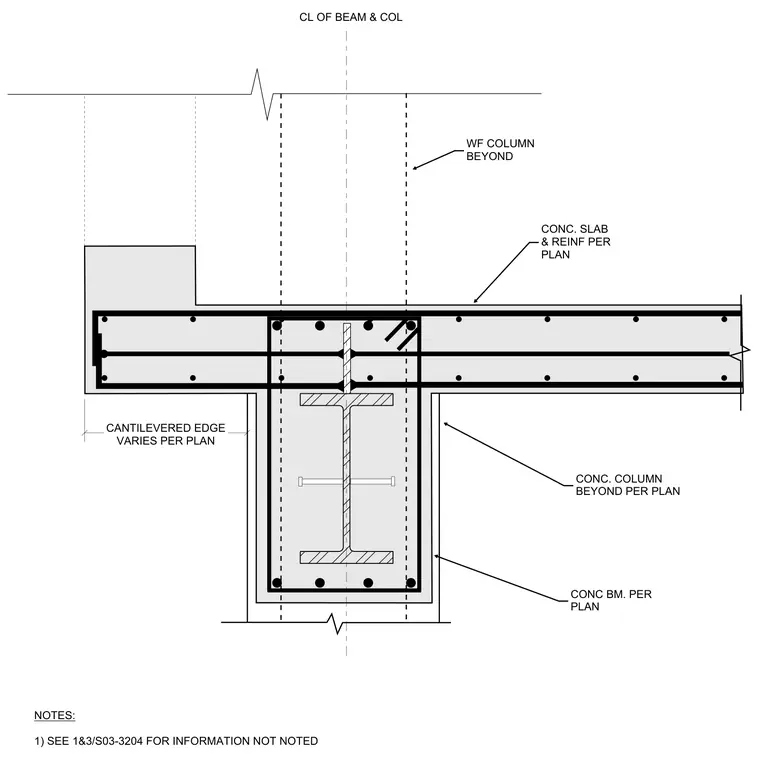

A wide-flange steel column extends beyond the centerline of the beam and column assembly. A concrete beam encases the structural steel member, with reinforcing steel detailed per plan. A concrete slab with reinforcing steel ties into the beam and terminates at a cantilevered edge that varies per plan. A concrete column is positioned beyond the primary assembly. Additional information is referenced on sheet S03-3204.
NOTES: 1) SEE 1&3/S03-3204 FOR INFORMATION NOT NOTED CL OF BEAM & COL CANTILEVERED EDGE VARIES PER PLAN CONC. SLAB & REINF PER PLAN CONC. COLUMN BEYOND PER PLAN CONC BM. PER PLAN WF COLUMN BEYOND
