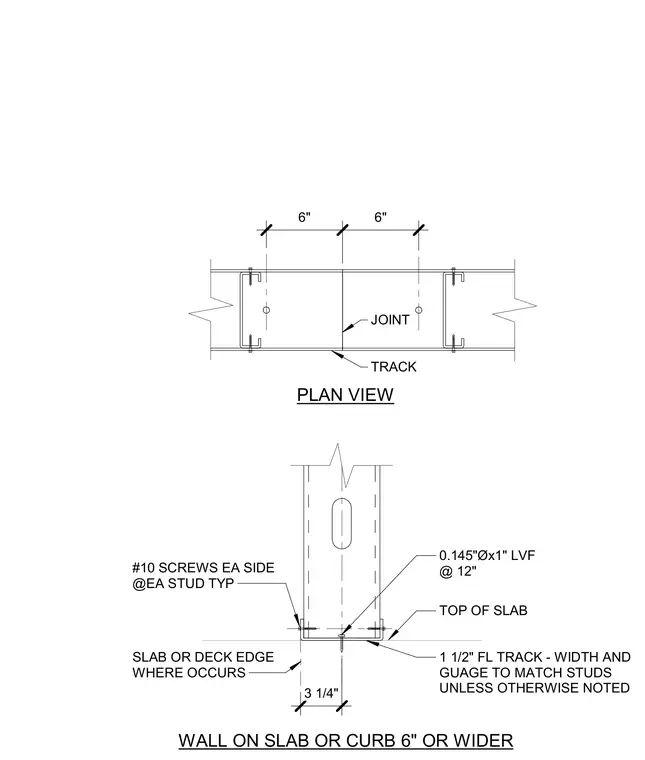

Cold-formed steel track anchorage at a concrete slab or curb edge. The assembly features a 1 1/2-inch flange track with width and gauge matching the studs unless otherwise noted, secured to the top of the slab using 0.145-inch diameter by 1-inch powder-actuated fasteners spaced at 12 inches on center. Wall studs attach to the track flanges using number 10 screws on each side at every stud typically. A joint plan view indicates the layout dimensions and fastener spacing along the track alignment.
6" 6" JOINT PLAN VIEW 0.145"Øx1" LVF @ 12" TOP OF SLAB 1 1/2" FL TRACK - WIDTH AND GUAGE TO MATCH STUDS UNLESS OTHERWISE NOTED SLAB OR DECK EDGE WHERE OCCURS #10 SCREWS EA SIDE @EA STUD TYP WALL ON SLAB OR CURB 6" OR WIDER 3 1/4" TRACK
