Structural · S-T24KA

Bolted Beam to Column Connection with Connection Plate

Elements

Connections

Braced Frame Connection Welded Connection Bolted Connection

About this detail

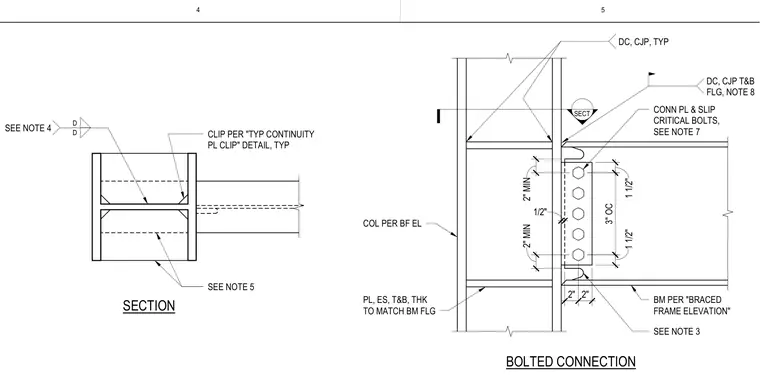

The beam connects to the column flange using a connection plate secured with slip-critical bolts spaced at three inches on center. The top and bottom flanges of the beam feature complete joint penetration welds as noted on the drawing. Continuity plates matching the beam flange thickness are provided at the column web. Additional clip angles and plate details are coordinated per the referenced structural notes and elevations.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
