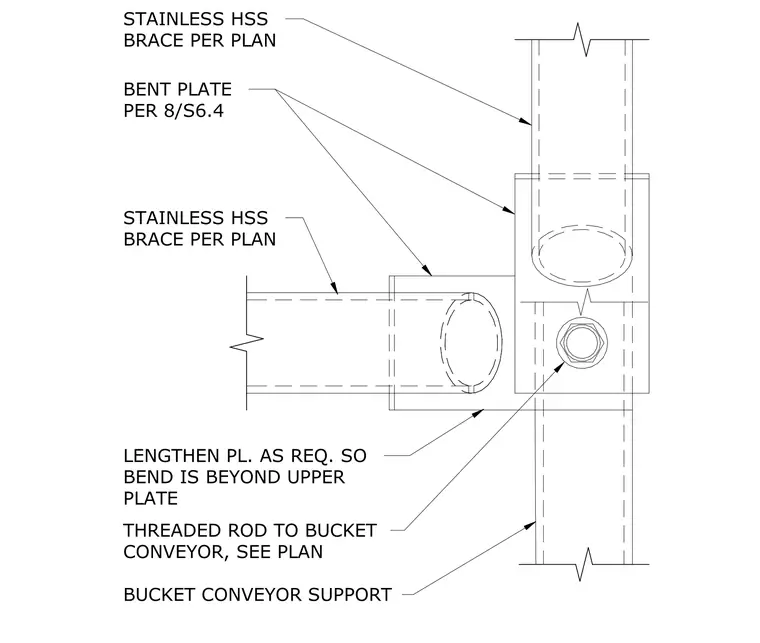

This assembly connects stainless steel hollow structural section braces to a bucket conveyor support structure using custom bent plates as specified in detail 8/S6.4. The bent plates are lengthened as required to ensure the bend clears the upper plate assembly. A threaded rod provides the primary mechanical connection to the bucket conveyor support, secured with double nuts and washers at the top and bottom of the connection point. All stainless steel hollow structural section braces are sized per the project plans.
Text on the drawing
3/16 STAINLESS BRACE, SEE PLAN 3" TYP. 3" STAINLESS HSS3x3x1/4 STAINLESS DOUBLE NUT WITH 3" WASHER, TOP & BOT., TYP. STAINLESS DOUBLE NUT WITH 3" WASHER, TOP & BOT., TYP. THREADED ROD, TYP., SEE PLAN 1/8" STAINLESS CAP PL., SEAL WELD STAINLESS DOUBLE NUT WITH WASHER, TYP. MAX. . 12" STAINLESS HSS BRACE PER PLAN BENT PLATE PER 8/S6.4 STAINLESS HSS BRACE PER PLAN
