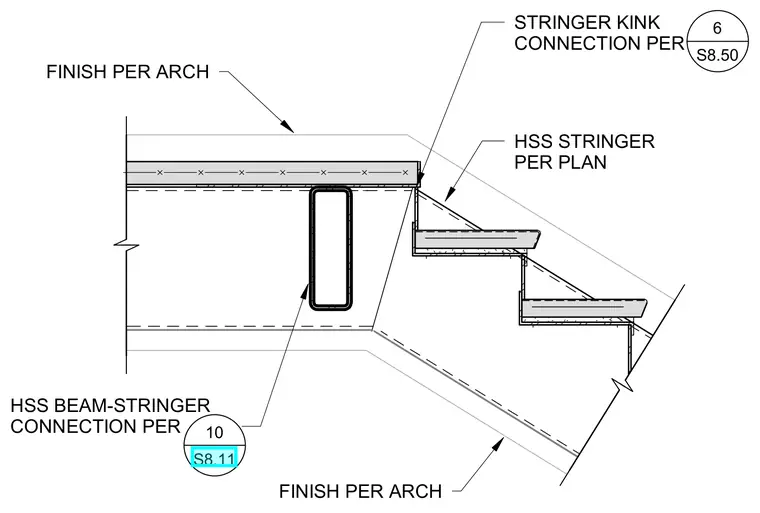

A hollow structural section stair stringer connects to an HSS header beam at a directional change or kink, transitioning to stair treads and risers. Architectural finishes are coordinated per the architectural drawings. The assembly references sheet details for the specific stringer kink connection and beam-to-stringer connection.
STRINGER KINK CONNECTION PER HSS STRINGER PER PLAN HSS BEAM-STRINGER CONNECTION PER FINISH PER ARCH 6 S8.50 10 S8.11 FINISH PER ARCH
