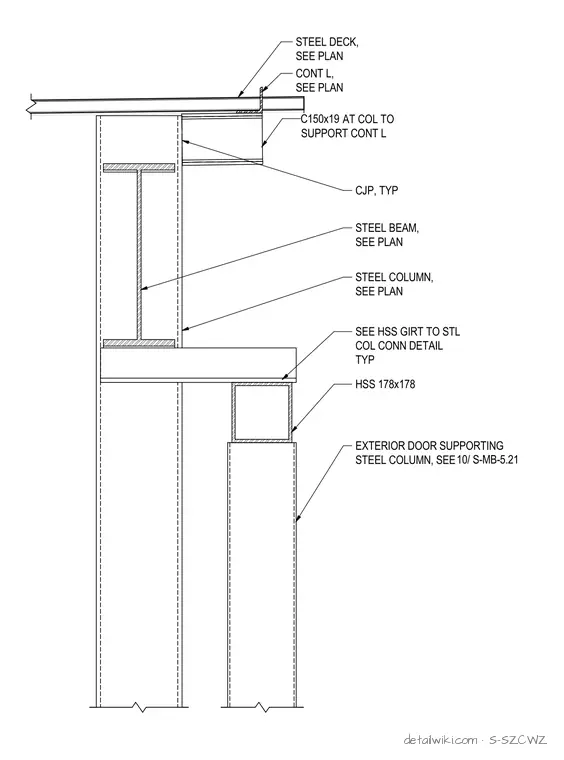

The assembly details a structural steel connection where a steel beam frames into or is supported alongside a steel column. A steel deck rests on top, supported by a continuous angle (cont L) and a channel section (C150x19) welded with complete joint penetration (CJP) welds. Additionally, an HSS 178x178 member acts as a girt connected to the steel column, supporting an exterior door frame structure below.
Text on the drawing
STEEL DECK, SEE PLAN STEEL BEAM, SEE PLAN STEEL COLUMN, SEE PLAN EXTERIOR DOOR SUPPORTING STEEL COLUMN, SEE 10/ S-MB-5.21 C150x19 AT COL TO SUPPORT CONT L CONT L, SEE PLAN SEE HSS GIRT TO STL COL CONN DETAIL TYP HSS 178x178 CJP, TYP
