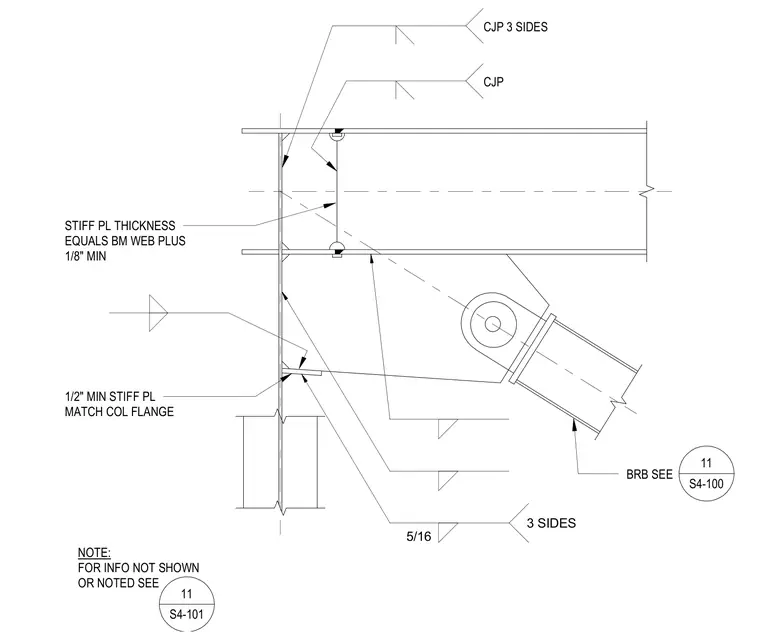

A buckling-restrained brace frames into the web of a wide flange structural steel column with a gusset plate welded directly to the column and beam assembly. A minimum one-half-inch stiffener plate matching the column flange is provided at the connection point. The stiffener plate thickness equals the beam web plus a minimum of one-eighth inch. Complete joint penetration welds are specified on three sides for the primary connection elements, complemented by five-sixteenth-inch fillet welds on three sides.
11 S4-100 11 S4-101 CJP 3 SIDES CJP 5/16 3 SIDES 1/2" MIN STIFF PL MATCH COL FLANGE STIFF PL THICKNESS EQUALS BM WEB PLUS 1/8" MIN BRB SEE NOTE: FOR INFO NOT SHOWN OR NOTED SEE
