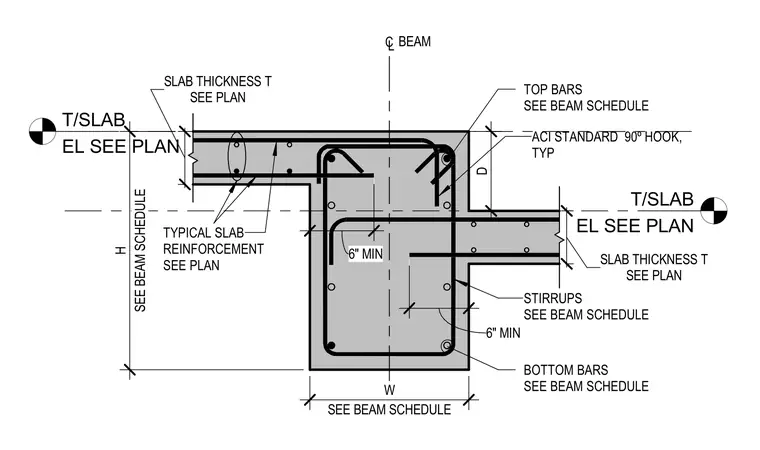

Concrete beam and slab intersection with reinforcing bars sized per the beam schedule. The concrete beam features top bars, bottom bars, and perimeter stirrups with a six-inch minimum embedment requirement. Slab reinforcement extends into the beam with an ACI standard ninety-degree hook typical at the beam edge. Overall beam dimensions for width and height are coordinated with the structural schedules.
C L BEAM TYPICAL SLAB REINFORCEMENT SEE PLAN T/SLAB EL SEE PLAN T/SLAB EL SEE PLAN SEE BEAM SCHEDULE H SEE BEAM SCHEDULE W BOTTOM BARS SEE BEAM SCHEDULE STIRRUPS SEE BEAM SCHEDULE D ACI STANDARD 90º HOOK, TYP TOP BARS SEE BEAM SCHEDULE SLAB THICKNESS T SEE PLAN SLAB THICKNESS T SEE PLAN 6" MIN 6" MIN
