Machine Beam Support at Concrete Slab Edge

Elements

About this detail

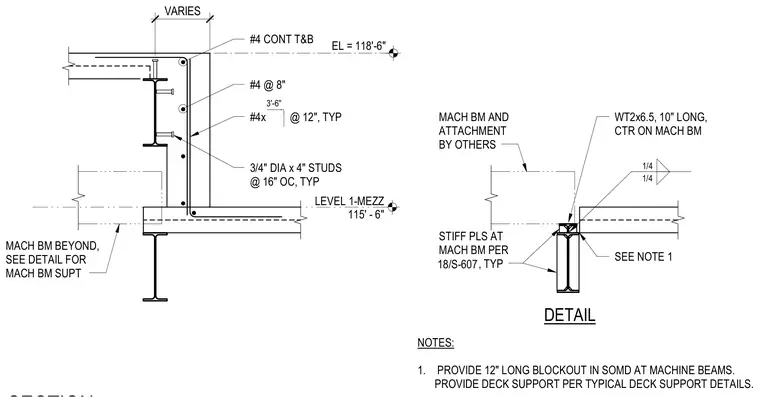

A structural steel WT shape supports machine beam attachments alongside a concrete slab edge reinforced with continuous top and bottom bars. Shear studs weld to the supporting steel members while stiffener plates reinforce the connection per engineering standards. A twelve-inch blockout in the slab accommodates the machine beam installation. Field welding connects the WT profile with quarter-inch fillet welds.
