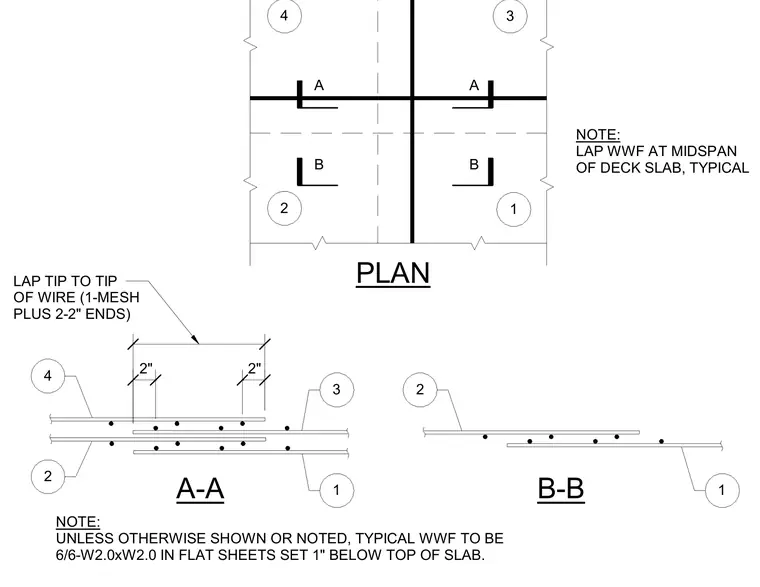

Welded wire fabric reinforcement consists of 6/6-W2.0xW2.0 flat sheets set one inch below the top of the concrete slab unless noted otherwise. Lap welded wire fabric at the midspan of the deck slab with splices configured tip-to-tip of wire including one mesh plus two-inch ends. Sections A-A and B-B illustrate the specific layering sequence and overlap dimensions for the wire mesh sheets.
2" 2" B A B A A-A PLAN B-B NOTE: UNLESS OTHERWISE SHOWN OR NOTED, TYPICAL WWF TO BE 6/6-W2.0xW2.0 IN FLAT SHEETS SET 1" BELOW TOP OF SLAB. LAP TIP TO TIP OF WIRE (1-MESH PLUS 2-2" ENDS) 2 4 1 3 2 2 1 NOTE: LAP WWF AT MIDSPAN OF DECK SLAB, TYPICAL 1 4 3 . . .
