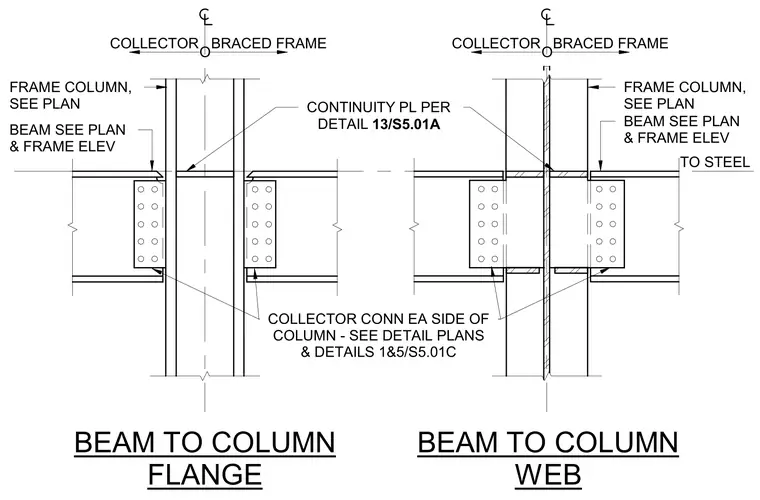

The steel beam connects to the column flange and column web in a special braced frame configuration. Continuity plates are welded across the column web aligned with the beam flanges. Collector connections are provided on each side of the column per detail plans. Beam sizes and frame elevations are sized per plan.
COLLECTOR CONN EA SIDE OF COLUMN - SEE DETAIL PLANS & DETAILS 1&5/S5.01C BEAM SEE PLAN & FRAME ELEV FRAME COLUMN, SEE PLAN CONTINUITY PL PER DETAIL 13/S5.01A O BRACED FRAME COLLECTOR TO STEEL BEAM TO COLUMN FLANGE BEAM TO COLUMN WEB O BRACED FRAME COLLECTOR BEAM SEE PLAN & FRAME ELEV FRAME COLUMN, SEE PLAN
