Structural · S-SYXDN

Offset

Elements

Connections

About this detail

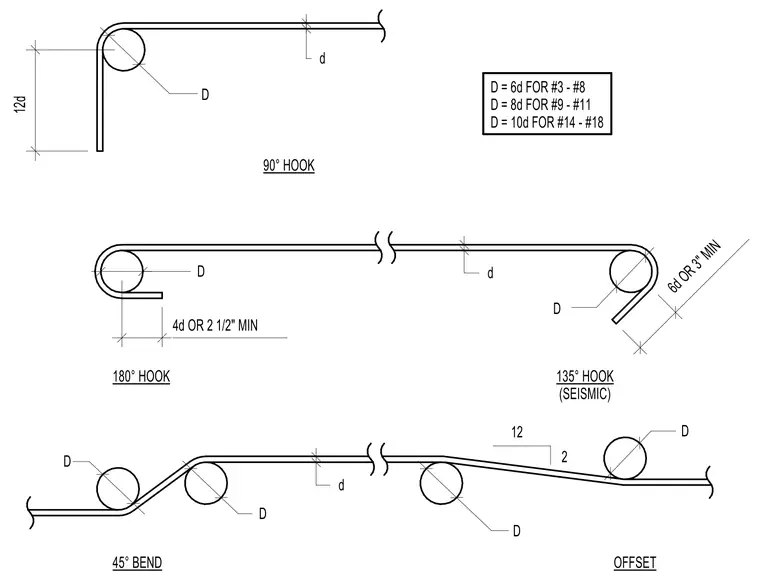

Reinforcing bar hooks and bends include ninety-degree, one hundred eighty-degree, one hundred thirty-five-degree seismic hooks, forty-five-degree bends, and offsets. Minimum bend diameters are specified as six times the bar diameter for number three through number eight bars, eight times for number nine through number eleven bars, and ten times for number fourteen through number eighteen bars. Extension lengths, tail lengths, and minimum clearances are detailed for each hook and offset configuration.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
