Structural · S-SYX3Z

Beam-To-Column Flange Moment Connection

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

Moment Connection Shear Tab / Single Plate Beam-to-Column Bolted Connection

About this detail

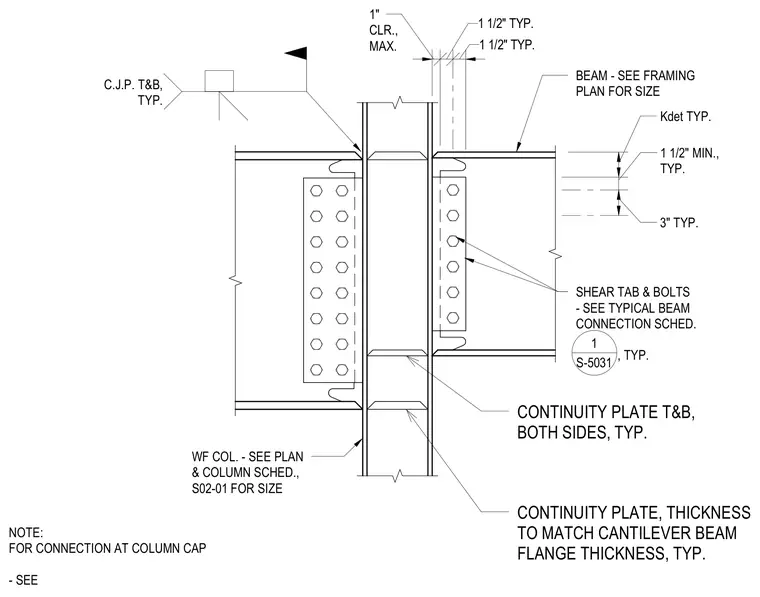

A wide-flange steel beam connects to a wide-flange column using complete joint penetration groove welds at the top and bottom flanges. Continuity plates are provided on both sides of the column web, matching the thickness of the cantilever beam flange. A shear tab with bolts connects the beam web, sized per the typical beam connection schedule. Clearances and edge distances are maintained with typical dimensions indicated from the column face and flange tips.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
