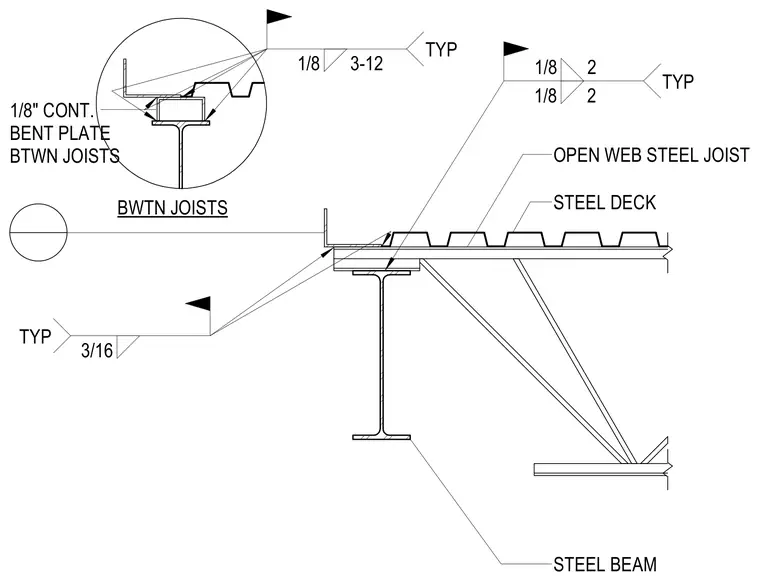

An open web steel joist bears on the top flange of a supporting steel beam, with metal steel deck spanning above. A one-eighth inch continuous bent plate is installed between the joists, welded with a three-sixteenth inch typical fillet weld. Additional weld callouts indicate one-eighth inch welds at two-inch intervals typical, and one-eighth inch welds at three to twelve-inch intervals typical.
BWTN JOISTS 1/8" CONT. BENT PLATE BTWN JOISTS STEEL BEAM OPEN WEB STEEL JOIST STEEL DECK 3/16 TYP 1/8 2 1/8 2 TYP 1/8 3-12 TYP
