Structural · S-SY49M

Braced Frame Baseplate Detail

Materials

Concrete Masonry / CMU

Elements

Walls Shear Walls Floors / Slabs Bracing Reinforcing

Connections

Braced Frame Connection Base Plate / Anchorage Rebar Splice / Development

About this detail

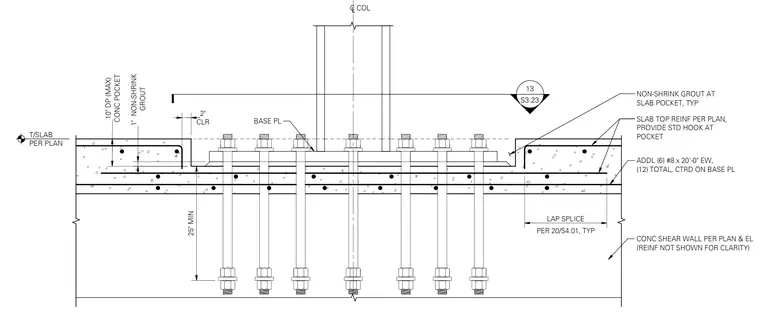

A column base plate sits atop a one-inch layer of non-shrink grout, secured by multiple anchor bolts extending deep into the concrete support. The surrounding concrete slab features a maximum ten-inch deep pocket filled with non-shrink grout, maintaining a two-inch clear cover. Additional number eight reinforcing bars measuring twenty feet long are placed in each way, totaling twelve bars centered on the base plate. Slab top reinforcement includes standard hooks at the pocket, with lap splices detailed per plan.
