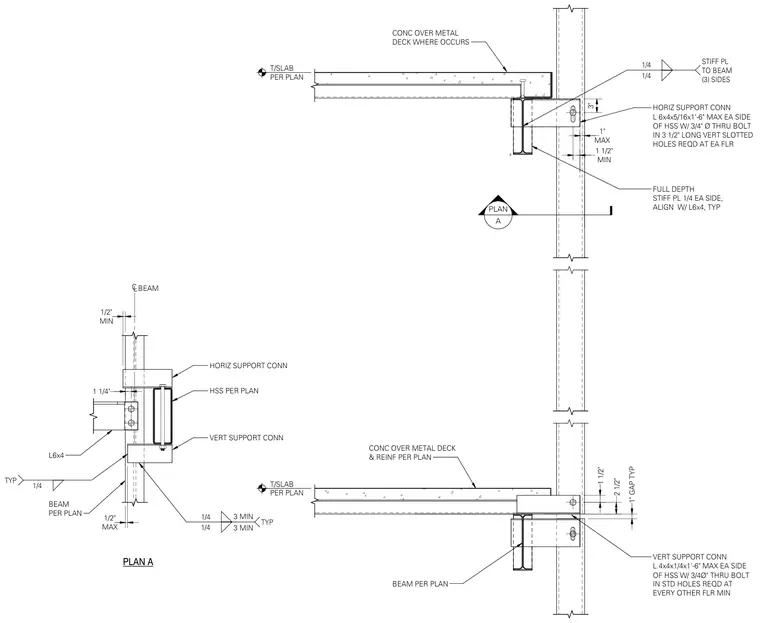

Horizontal and vertical connections occur between framing beams and a hollow structural section column supporting concrete over metal deck floors. The horizontal support connection consists of an L 6x4x5/16 by 1'-6" maximum angle on each side of the hollow structural section, fastened with 3/4-inch diameter through bolts in 3-1/2-inch long vertical slotted holes required at each floor with a 1-inch gap. The vertical support connection uses an L 4x4x1/4 by 1'-6" maximum angle on each side of the hollow structural section with 3/4-inch diameter through bolts in standard holes required at every other floor minimum. Full depth stiffener plates measuring 1/4-inch are welded to each side of the beam and aligned with the angle, welded on three sides with 1/4-inch fillet welds. Concrete over metal deck with reinforcement occurs per plan, bearing against the structural framing.
PLAN A CONC OVER METAL DECK & REINF PER PLAN BEAM PER PLAN VERT SUPPORT CONN L 4x4x1/4x1'-6" MAX EA SIDE OF HSS W/ 3/4Ø" THRU BOLT IN STD HOLES REQD AT EVERY OTHER FLR MIN 2 1/2" FULL DEPTH STIFF PL 1/4 EA SIDE, ALIGN W/ L6x4, TYP 1/4 1/4 STIFF PL TO BEAM (3) SIDES T/SLAB PER PLAN CONC OVER METAL DECK WHERE OCCURS C L BEAM HSS PER PLAN VERT SUPPORT CONN BEAM PER PLAN 1/4 1/4 TYP 1/4 TYP HORIZ SUPPORT CONN HORIZ SUPPORT CONN L 6x4x5/16x1'-6" MAX EA SIDE OF HSS W/ 3/4" Ø THRU BOLT IN 3 1/2" LONG VERT SLOTTED HOLES REQD AT EA FLR 1" GAP TYP 3 MIN 3 MIN MAX 1" MIN 1 1/2" MIN 1/2" MAX 1/2" L6x4 T/SLAB PER PLAN 1 1/4" 1 1/2" A PLAN 3"
