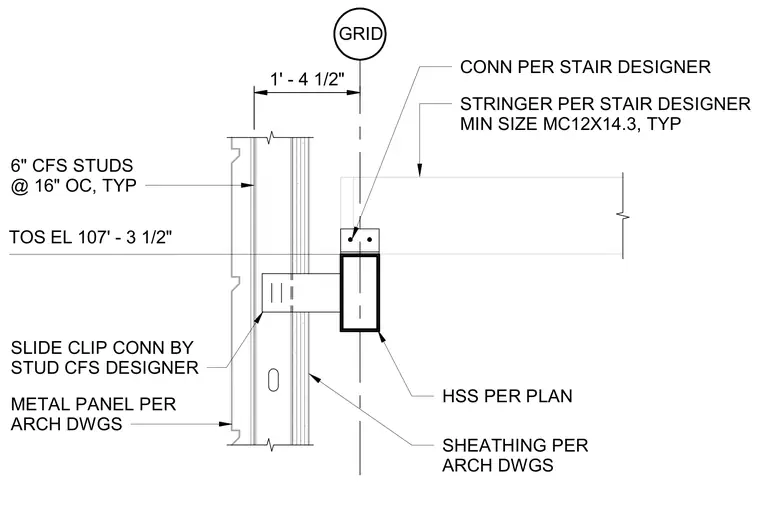

An MC12x14.3 stair stringer with a minimum size connects to a hollow structural section member per plan using a connection designed by the stair designer. A slide clip connection designed by the cold-formed steel stud designer anchors the HSS framing back to six-inch cold-formed steel studs spaced at sixteen inches on center. The exterior wall assembly features sheathing and metal panels per architectural drawings, set at a top-of-steel elevation of 107 feet 3.5 inches and offset 1 foot 4.5 inches from the structural grid line.
TOS EL 107' - 3 1/2" CONN PER STAIR DESIGNER STRINGER PER STAIR DESIGNER MIN SIZE MC12X14.3, TYP 1' - 4 1/2" HSS PER PLAN METAL PANEL PER ARCH DWGS 6" CFS STUDS @ 16" OC, TYP SLIDE CLIP CONN BY STUD CFS DESIGNER SHEATHING PER ARCH DWGS GRID
