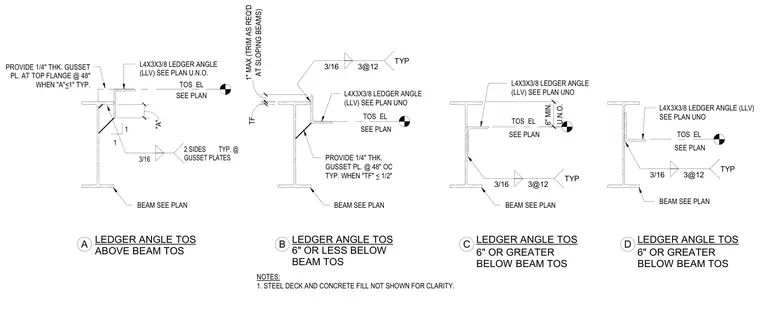

Structural steel ledger angles connect to supporting beams at four different relative elevations. Detail A positions a ledger angle above the beam top of steel, utilizing a L4x3x3/8 ledger angle with a quarter-inch thick gusset plate welded on two sides at forty-eight inches on center when dimension A is one inch or less. Detail B locates a ledger angle six inches or less below the beam top of steel, featuring a quarter-inch thick gusset plate spaced at forty-eight inches on center when the top flange thickness is half an inch or less, welded with three-sixteenths inch welds at twelve inches typical. Detail C and Detail D place ledger angles six inches or greater below the beam top of steel, welded with three-sixteenths inch welds at twelve inches typical. All configurations use L4x3x3/8 ledger angles with long leg vertical unless noted otherwise, and steel deck and concrete fill are omitted for clarity.
1 1 6" OR LESS BELOW BEAM TOS LEDGER ANGLE TOS LEDGER ANGLE TOS B LEDGER ANGLE TOS LEDGER ANGLE TOS 6" OR GREATER BELOW BEAM TOS SEE PLAN TOS EL PROVIDE 1/4" THK. GUSSET PL. @ 48" OC TYP. WHEN "TF" < 1/2" SEE PLAN TOS EL L4X3X3/8 LEDGER ANGLE (LLV) SEE PLAN UNO PROVIDE 1/4" THK. GUSSET PL. AT TOP FLANGE @ 48" WHEN "A"<1" TYP. TOS EL SEE PLAN TOS EL SEE PLAN NOTES: 1. STEEL DECK AND CONCRETE FILL NOT SHOWN FOR CLARITY. L4X3X3/8 LEDGER ANGLE (LLV) SEE PLAN UNO L4X3X3/8 LEDGER ANGLE (LLV) SEE PLAN UNO L4X3X3/8 LEDGER ANGLE (LLV) SEE PLAN U.N.O. BEAM SEE PLAN BEAM SEE PLAN 6" OR GREATER BELOW BEAM TOS TF AT SLOPING BEAMS) 1" MAX (TRIM AS REQ'D U.N.O. 6" MIN. ABOVE BEAM TOS "A" 3/16 2 SIDES TYP. @ GUSSET PLATES 3/16 3@12 TYP 3/16 3@12 TYP 3/16 3@12 TYP A C D BEAM SEE PLAN BEAM SEE PLAN
