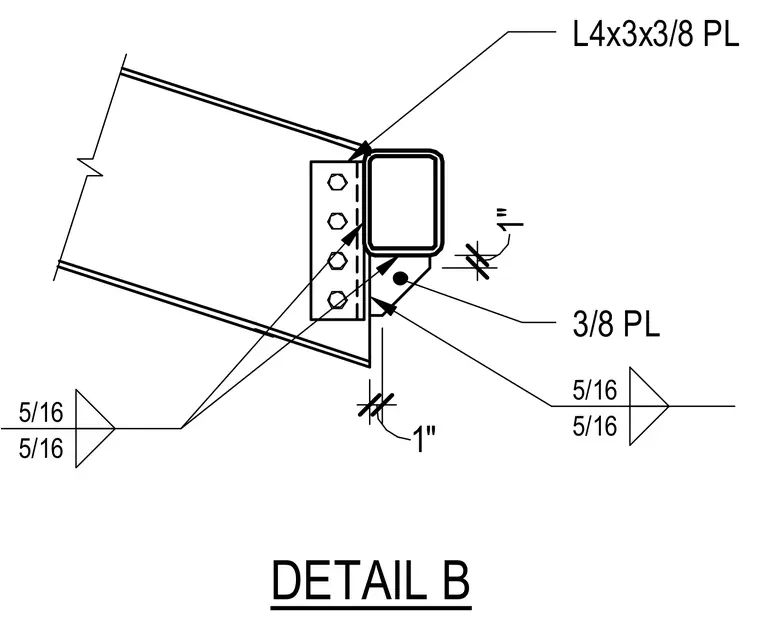

An L4x3x3/8 angle member is welded to a hollow structural section with 5/16-inch fillet welds. A 3/8-inch plate connects the assembly with four bolts and is secured with 5/16-inch fillet welds.
