Structural · S-SX34R

Deck Parallel to Overhang Exterior Condition

Materials

Elements

Beams Walls Facades / Cladding Floors / Slabs Decks Bracing Anchors / Embeds Connections / Plates Reinforcing Roof / Floor Openings

Connections

Bracing Connection Welded Connection Bolted Connection Deck Attachment Expansion / Slip Connection

About this detail

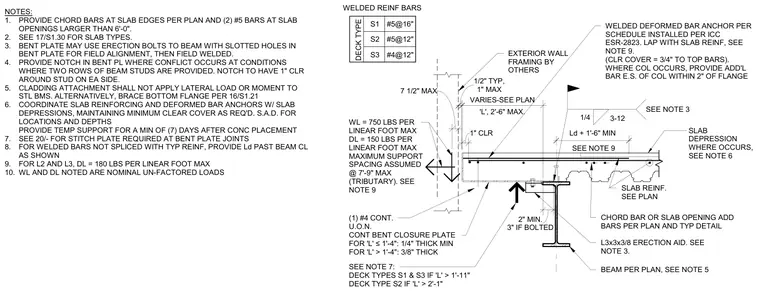

A concrete slab on metal deck runs parallel to an exterior overhang condition, bearing on a steel beam detailed per plan. A continuous bent closure plate spans the overhang extension, sized one-quarter inch thick minimum for overhang lengths up to one foot four inches, and three-eighths inch thick for longer spans. Welded deformed bar anchors are installed per ICC ESR-2823 and lapped with slab reinforcement, maintaining a three-quarter inch clear cover to top bars. A continuous number four bar is provided uniformly, with additional chord bars or slab opening add bars placed per plan. Erection aid angles (L3x3x3/8) attach the assembly, allowing bent plates to use erection bolts with slotted holes for field alignment before field welding. Temporary support must remain in place for a minimum of seven days after concrete placement.
