Structural · S-SWZZ8

Floor Opening Angle Frame Detail

Materials

Concrete Steel Metal (misc.)

Elements

Beams Floors / Slabs Decks Arches Roof / Floor Openings

Connections

Welded Connection Deck Attachment

About this detail

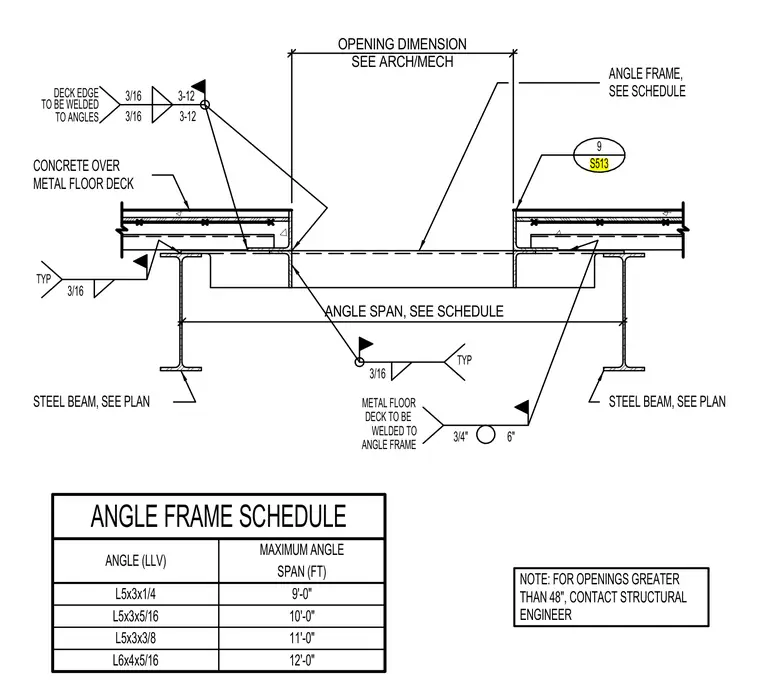

A concrete slab over a metal floor deck is framed around an opening using structural steel angles sized per the angle frame schedule. The metal floor deck edge is welded to the supporting steel angles with three-sixteenth-inch fillet welds typically spaced at three inches on center. The angle frame spans between structural steel beams sized per plan, with the metal floor deck welded to the angle frame using three-quarter-inch welds at six inches on center. For openings greater than forty-eight inches, contact the structural engineer.
