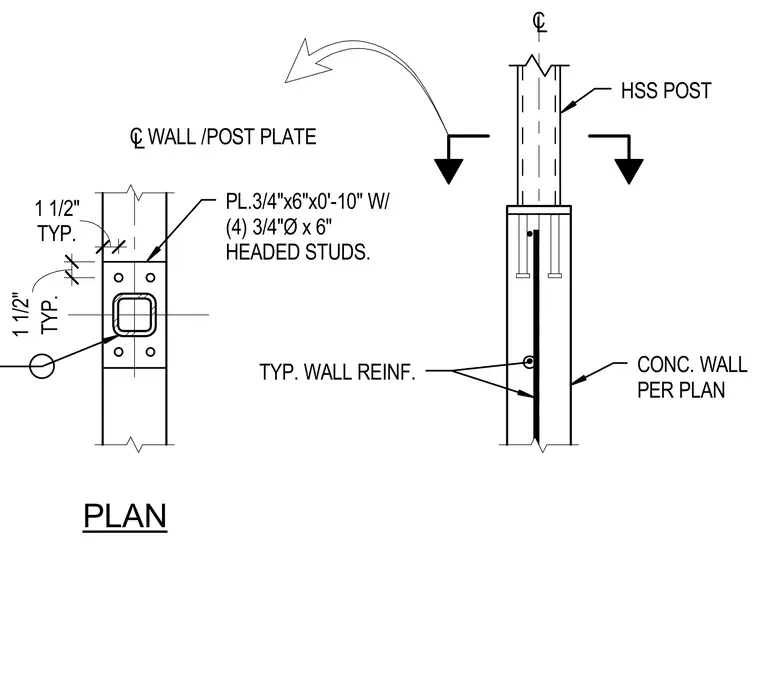

An HSS post connects to a concrete wall via a three-quarter-inch by six-inch by zero-foot-ten-inch steel plate embedded with four three-quarter-inch diameter by six-inch headed studs. The concrete wall is detailed per plan with typical wall reinforcement. Clearances and edge distances are maintained at one and a half inches typical.
L C L C WALL /POST PLATE PLAN PL.3/4"x6"x0'-10" W/ (4) 3/4"Ø x 6" HEADED STUDS. HSS POST CONC. WALL PER PLAN TYP. WALL REINF. TYP. 1 1/2" TYP. 1 1/2"
