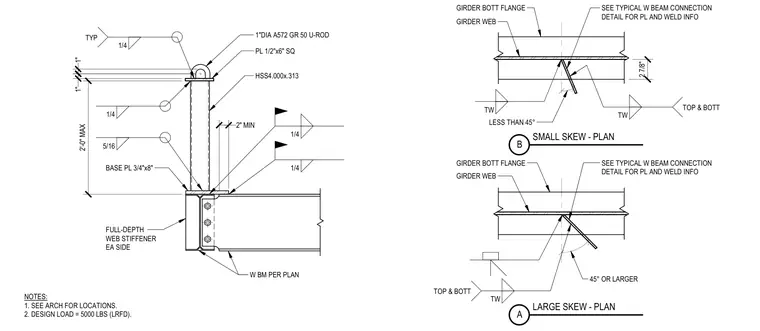

A skewed beam-to-beam connection utilizes a hollow structural section member, base plate, U-rod, and full-depth web stiffeners on each side of the girder web. The assembly incorporates a 3/4" x 8" base plate welded with 5/16" and 1/4" fillet welds, connecting to a wide flange beam specified per plan. A 1" diameter A572 Grade 50 U-rod anchors through a square 1/2" x 6" plate atop an HSS4.000x.313 column. Plan views demonstrate framing geometries for both small and large skews relative to the girder bottom flange and web, governed by a design load of 5000 pounds under LRFD criteria.
GIRDER BOTT FLANGE GIRDER WEB LESS THAN 45° TW TW TOP & BOTT SEE TYPICAL W BEAM CONNECTION DETAIL FOR PL AND WELD INFO SMALL SKEW - PLAN B 2 7/8" 1"DIA A572 GR 50 U-ROD PL 1/2"x6" SQ HSS4.000x.313 W BM PER PLAN FULL-DEPTH WEB STIFFENER EA SIDE 1" 1" 5/16 1/4 TYP 1/4 NOTES: 1. SEE ARCH FOR LOCATIONS. 2. DESIGN LOAD = 5000 LBS (LRFD). 2'-0" MAX 2" MIN 1/4 BASE PL 3/4"x8" 1/4 TW TOP & BOTT 45° OR LARGER SEE TYPICAL W BEAM CONNECTION DETAIL FOR PL AND WELD INFO GIRDER BOTT FLANGE GIRDER WEB LARGE SKEW - PLAN A
