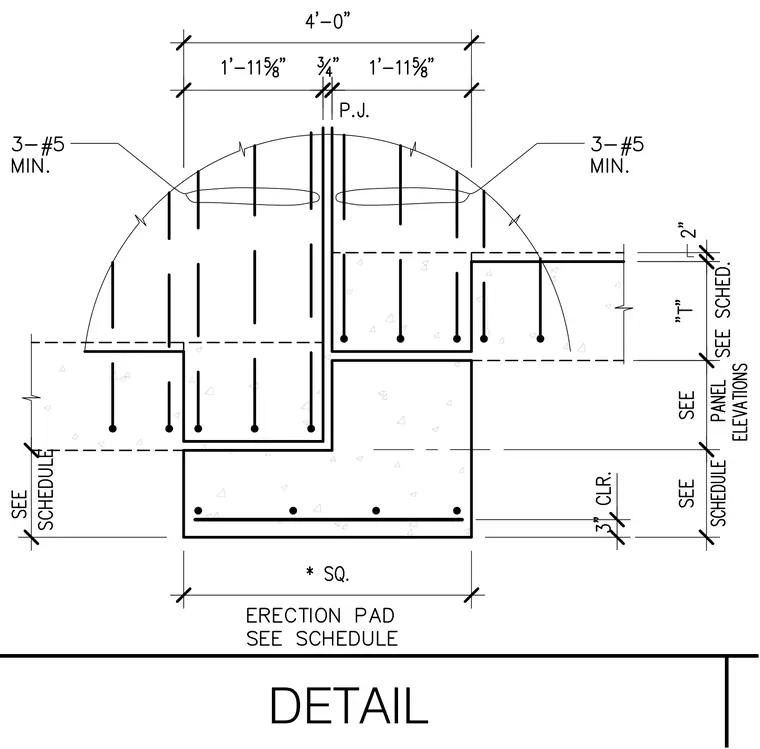

Precast concrete wall panels bear upon a concrete erection pad sized per the schedule, with three number five reinforcing bars minimum at the panel base. A vertical three-quarter-inch preformed joint separates the adjacent wall panels. The stepped concrete foundation features bottom reinforcement with a three-inch clearance. Panel thickness dimensions and footing sizes are referenced from the engineering schedule.
