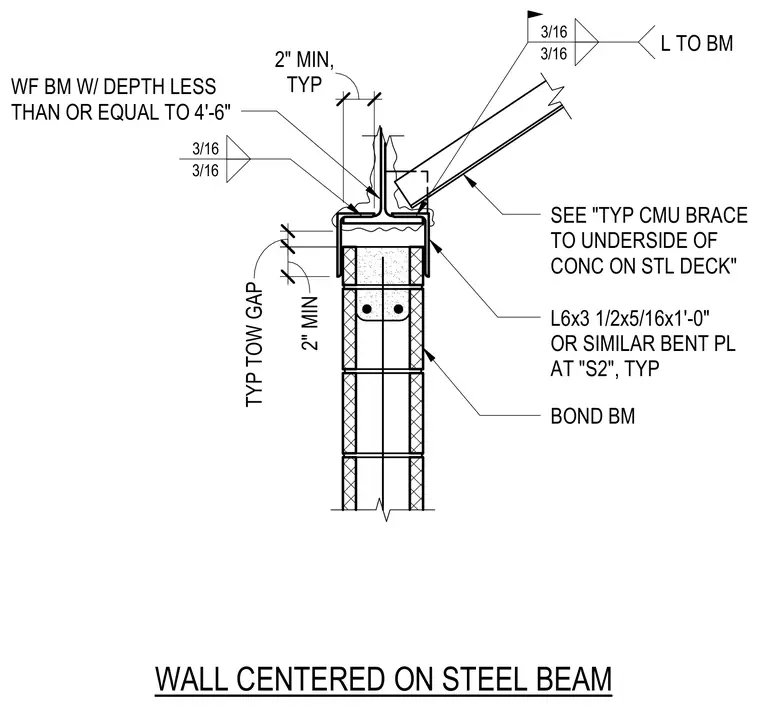

A masonry wall is centered on a wide-flange steel beam with a depth less than or equal to four feet six inches, maintaining a typical top-of-wall gap of three inches. An L6x3 1/2 x 5/16 by one-foot-long bent plate or similar detail at S2 connects the bond beam with three-sixteenth-inch fillet welds. An angle brace extends upward to connect to the beam with three-sixteenth-inch fillet welds. A minimum two-inch clearance is maintained at the top of the wall.
3" TYP TOW GAP SEE "TYP CMU BRACE TO UNDERSIDE OF CONC ON STL DECK" L6x3 1/2x5/16x1'-0" OR SIMILAR BENT PL AT "S2", TYP BOND BM L TO BM 3/16 3/16 3/16 3/16 WALL CENTERED ON STEEL BEAM 1 1/2" WF BM W/ DEPTH LESS THAN OR EQUAL TO 4'-6" 2 7/8" 2" MIN 2" MIN, TYP
